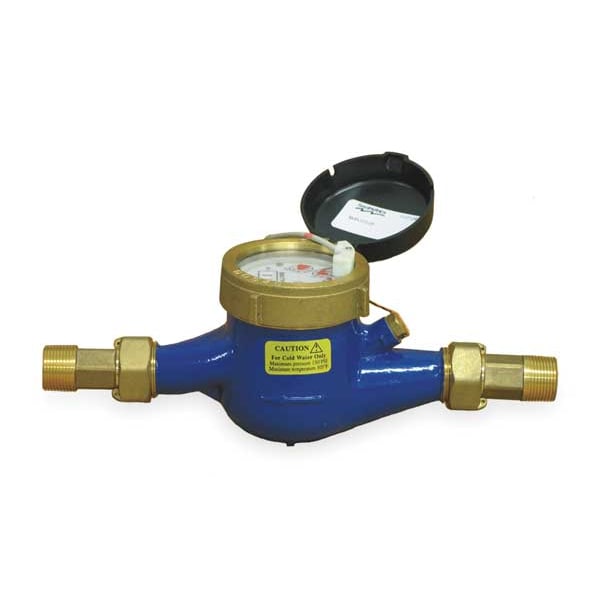

Pulsafeeder

Flowmeter, Pulse, 22 GPM, 3/4 In.


product price: $201.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pulse
  • Housing Material Brass
  • For Pipe Size 3/4 to 2 in
  • Flow Material Water
  • Connection Size 3/4 in
See all product information

Product Information

Dimensions

For Pipe Size 3/4 to 2 in
Connection Size 3/4 in
Length 12 5/8 in
Length (In.) 12-5/8"
Cable Length (Ft.) 12 ft
Connection Size (In.) 3/4 MNPT
Overall Length 11.6 in
Cable Length 12 ft

Details

Item Mechanical Flowmeter
Type Pulse
Housing Material Brass
Flow Material Water
Connection Type NPT
Max. Pressure 150 psi
Wetted Materials Bronze, Thermoplastic
Max. Viscosity 31 SUS
Flow Range 0.22 to 22 gpm
Fluid Temp. Range 35 Degrees to 105 Degrees F
Thread Male Pipe
Max. Reed Switch Current (mA) 20 mA
Display 5 Digit
Accuracy (%) 1.5
Pulses per Gallon 10 pulses/gal
GPM Max. 22 gpm
Max. Voltage 24
Gauge/Conductor 24/4
Max. Pressure (PSI) 150
Flow Range (GPM) 0.22 to 22
Max. Temp. (F) 105
Flow Range @ GPM of Water 0.22 to 22
Output Type Scaled Pulse
Seal Material Natural Rubber
Display Type Analog
Standards AWWA C-708
Shaft Material Tungsten Carbide
Product Type Water Meter
O-Ring Material Natural Rubber
Rotor Material Plastic
Wetted Material Bronze, Thermoplastic
Includes Flow Rate Adjustment Knob No
Flow Rate - Minimum 0.5 gpm
Unit Of Measure Gallons
Media Temperature - Minimum 35 Degrees F
Includes Pressure Gauge No
Includes Totalizer Yes
Viscosity - Maximum 31 SUS
Operating Pressure - Maximum 150 psi
Accuracy +/-1.5%
Flow Rate - Maximum 30 gpm
Pulse Rate 0.1 pulses/gal
Compatible Flow Material Water
Mounting Orientation Universal
Media Temperature - Maximum 105 Degrees F
Voltage - Maximum 24V DC

Description

Mechanical Flowmeter, Product Type Water Meter, Accuracy +/-1.5 Percent, Connection Size 3/4 in, Connection Type NPT, Compatible Flow Material Water, Media Temperature - Maximum 105 Degrees F, Media Temperature - Minimum 35 Degrees F, Viscosity - Maximum 31 SUS, Voltage - Maximum 24V DC, Housing Material Brass, Rotor Material Plastic, O-Ring Material Natural Rubber, Seal Material Natural Rubber, Shaft Material Tungsten Carbide, Wetted Material Bronze, Thermoplastic, Standards AWWA C-708

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
