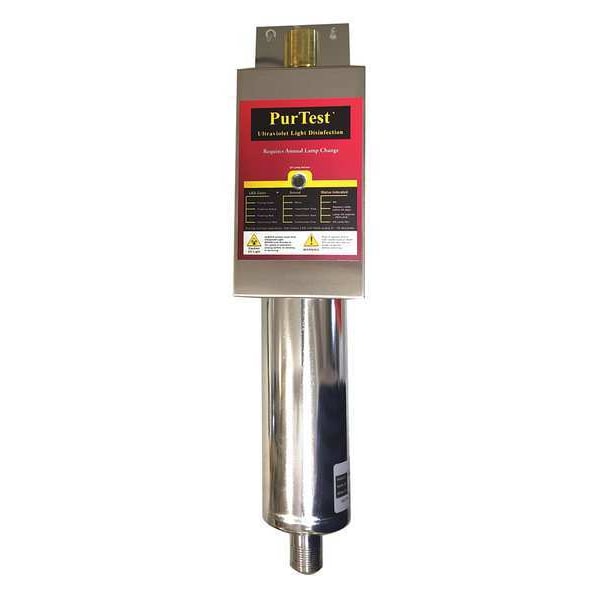

21 in "L, 3/4 in Size, UV Disinfection Unit

  • Mfr # PT 8 UV

  • Zoro # G6775745


product price: $637.99
/ea
Free Shipping & Returns

Key Features

Size
3/4 in
Connection
MIP
Exposure
30,000 UWS/CM2
Width (In.)
3 1/2 in
Reduces
Bacteria
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PT 8 UV
Zoro #
G6775745
UPC #
722432888086
Country of Origin
United States

Dimensions

Size
3/4 in
Width (In.)
3 1/2 in
Height (In.)
3 1/2 in
Length (In.)
21 in
Height
3 1/2 in
Overall Height
3 1/2 in
Width
3 1/2 in
Wavelength
254 nm
Connection Size
3/4 in

Details

Item
UV Disinfection Unit
Connection
MIP
Exposure
30,000 UWS/CM2
Reduces
Bacteria
Max. Hardness
7
Max. Iron
0.3
Lamp Watts
24 W
Max. Manganese
0.05
Flow (GPM)
8
Temp. Range (F)
35 to 110 Degrees
Voltage
120 V
Housing Material
Stainless Steel
Chamber
Stainless Steel
Suspended Solids
5 NTU
Max. Pressure (PSI)
100 psi
Flow Rate
8 gpm
Chamber Material
Stainless Steel
Minimum Temperature
35 Degrees F
Maximum Manganese Removed
0.05 mg
Connection Gender
Female
Rated Life
9,000 hr
Number of Lamps Included
1
Maximum Temperature
110 Degrees F
Safety Features
Electronic Control Box; Flow Restrictor
Connection Type
NPT
Maximum Pressure
100 psi
Maximum Iron Removed
0.3 mg
Maximum Hardness
7 mg

Description

UV Disinfection Unit, Reduces Water Borne Pathogenic Bacteria, Connection Size 3/4 in, Lamp Watts 24 W, Flow Rate 8 gpm, Voltage 120 V, Exposure 30,000 UWS/CM2, Overall Height 3 1/2 in, Width 3 1/2 in, Connection Gender Female, Connection Type NPT, Maximum Pressure 100 psi, Chamber Material Stainless Steel, Housing Material Stainless Steel, Maximum Hardness 7 mg, Maximum Iron Removed 0.3 mg, Maximum Manganese Removed 0.05 mg, Maximum Temperature 110 Degrees F, Minimum Temperature 35 Degrees F
