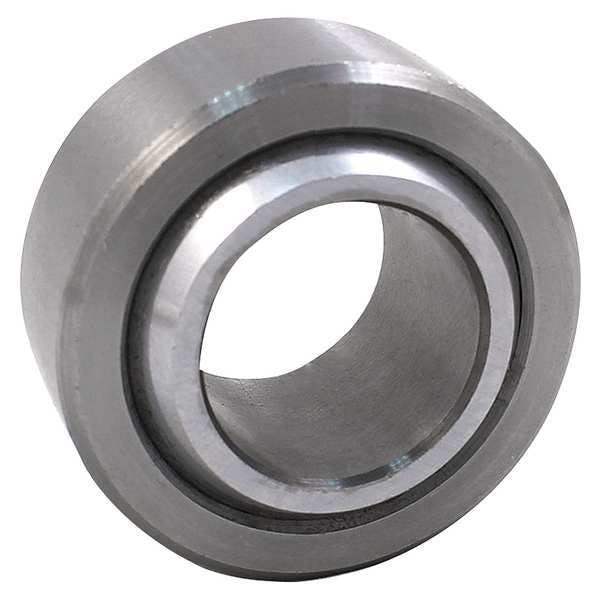

Spherical Bearing, Bore Dia. 1.0000 In.
Mfr # HCOM16T
Zoro # G5757272
product price: $52.35
/eaKey Features
Bore Dia.
1 in
Static Load Capacity
106,230 lb
Ball Dia.
1.687 in
Raceway Material
Heat Treated Chromoly Steel, PTFE-Lined
Series
Commercial Large Bore
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HCOM16T
Zoro #
G5757272
UPC #
806990008947
Country of Origin
China
Dimensions
Bore Dia.
1 in
Ball Dia.
1.687 in
Width
1 in
Outside Dia.
2 in
Outer Ring Width
0.781 in
Bore Diameter Tolerance
-0.0005/+0.0015 in
Ball Diameter
1.687 in
Outside Diameter Tolerance
+0.0000/- 0.0007 in
Flat Diameter
1.36 in
Inner Ring Width
1 in
Outside Diameter
2 in
Bore Diameter
1 in
Overall Width
1 in
Description
Spherical Plain Bearing, Liner Material PTFE, Bore Diameter 1 in, Ball Diameter 1.687 in, Outer Ring Width 0.781 in, Outside Diameter 2 in, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance -0.0005/+0.0015 in, Closure Open, Finish Chrome Plated, Flat Diameter 1.36 in, Inner Ring Width 1 in, Lubrication Openings Lubrication Hole, Maximum Ball Swivel 9 Degrees , Outside Diameter Tolerance +0.0000/- 0.0007 in, Overall Width 1 in
