  13. 480VAC Hazardous-Location Electric Heater, 3 Phase, 18.7 Amps AC

This item is Discontinued.

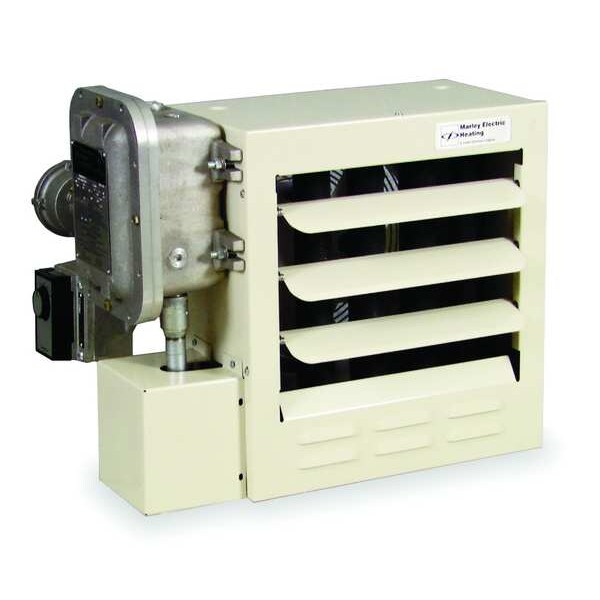

Qmark 480VAC Hazardous-Location Electric Heater, 3 Phase, 18.7 Amps AC GUX15004832

480VAC Hazardous-Location Electric Heater, 3 Phase, 18.7 Amps AC (Discontinued)

  • Mfr # GUX15004832
  • Zoro # G2684351
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GUX15004832
Zoro #
G2684351
UPC #
685360034119
Country of Origin
Mexico

Dimensions

Overall Height
25 in
Overall Width
27 7/8 in
Cabinet Depth
11 1/16 in
Manufacturers Warranty Length
1 yr
Cabinet Height
25 in
Overall Depth
21 in
Cabinet Width
27 7/8 in
Overall Dimensions - H x W x D
25 in x 27-7/8 in x 21 in
Cabinet Dimensions - W x H x D
27-7/8 in x 25 in x 11-1/16 in

Details

Heater Voltage
480VAC
BtuH Output
51,180
kW
15
Item
Hazardous-Location Electric Heater
Amps AC
18.7
Heater Type
Fan Forced
Phase
3
Air Flow
1,450 cfm
Includes
120V Control Circuit and Pilot Light, Aluminum Fins, Disconnect Switch, Fan Selector Switch, Non-Toxic Heat Transfer Fluid, Pressure Relief Plug, Steel Tubes
Features
Ball Bearing Permanently Lubricated Explosion Proof Motor, Manual Reset High Limit Cutout, Disconnect Switch, Fan Selector Switch, 120V Control Circuit and Pilot Light
Hz
60
Housing Material
Steel
Standards
cULus Listed
Housing Finish
Powder Coated
Contactor Coil Voltage
24V AC
Voltage
480V AC
Heating Method
Fan Forced
Housing Color
White
Thermostat Included
No
Amperage
18.7 A
Hazardous Location Rating
Class I, Group C and D, Division 1 and 2; Class II, Groups E, F and G
Frequency
60 Hz
Air Temp. Rise
31 Degrees F
Heating Capacity
51,180 BtuH
Voltage, Phase
480V AC, 3-phase
Wattage Output
15 kW
Control Type
Thermostat

Description

Hazardous-Location Electric Heater, Overall Height 25 in, Overall Width 27 7/8 in, Overall Depth 21 in, Cabinet Height 25 in, Cabinet Width 27 7/8 in, Cabinet Depth 11 1/16 in, Voltage 480V AC, 3 Phase, Wattage Output 15 kW, Air Flow 1,450 cfm, Air Temp. Rise 31 Degrees F, Hazardous Location Rating Class I, Group C and D, Division 1 and 2; Class II, Groups E, F and G, Housing Color White, Housing Finish Powder Coated, Housing Material Steel, Heating Method Fan Forced
