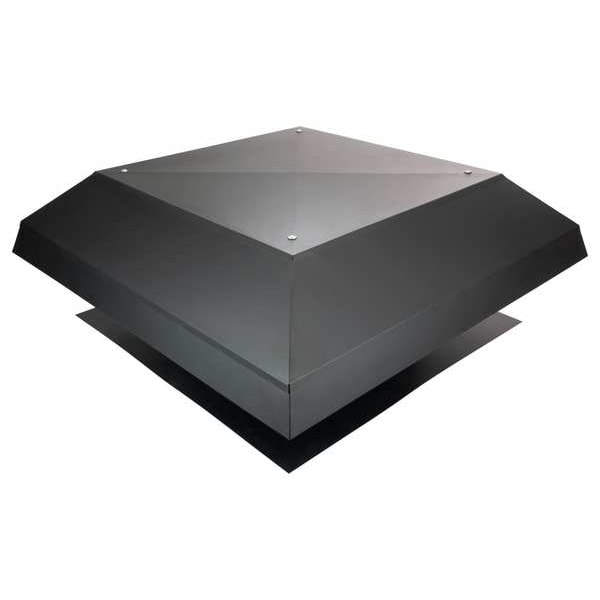

RM WHF-4.0DG1 Steel Roof Whole House Fan

Mfr # RM WHF-4.0-DG1
Zoro # G603509020

1,309.99

Additional $280.00 delivery surcharge applies per item.

Key Features

Type

Roof Mount Whole House Fans

Fan Voltage

120V AC

Coverage (Square-Ft.)

1220 to 2831

CFM High

3,543 cfm

CFM Medium

3,205 cfm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: RM WHF-4.0-DG1
Zoro #: G603509020
UPC #: 811658022272
Country of Origin: United States

Dimensions

Height (In.): 15 in
Blade Diameter: 22 in
For Cut-Out Height: 22 1/2 in
Grille Width: 22 in
Grille Length: 22 in
For Cut-Out Width: 22 1/2 in

Details

Type: Roof Mount Whole House Fans
Fan Voltage: 120V AC
Coverage (Square-Ft.): 1220 to 2831
CFM High: 3,543 cfm
CFM Medium: 3,205 cfm
Item: Whole House Fan
Housing Finish: Powder Coated
Includes: Accessory Bag, Cut-Out Template, RF Wireless Control Kit, RM WHF-4.0 Fan
Number of Blades: 3
Requires: 24 in Roof Rafter/24 in Center Joist
CFM Low: 2,878 cfm
Motor Type: Electronically Commutated
Watts: 451/316/219 W
Hz: 60 Hz
Phase: 1
Housing Material: Steel
Amps: 5.5/3.9/2.8 A
Fits: 24 in Roof Rafter/24 in Center Joist
For High-Static Pressure Applications: Yes
Grille Material: Aluminum
Speed Controllable: Yes
Quiet Design: Yes
Maximum Coverage Area: 2,831 sq ft
Rough Opening Type: Square
Maximum Airflow: 3,543 cfm
Drive Type: Direct Drive
Blade Material: Steel
Wattage: 451 W
Standards: UL Listed
Nameplate Voltage: 120V AC
Number of Speeds: 3
High-Efficiency Motor: Yes
Includes Grill: Yes
Coverage Area: 1,831 sq ft

Description

Whole House Fan, Mounting Location Roof, Quiet Design Yes, Number of Speeds 3, Nameplate Voltage 120V AC, Speed Controllable Yes, Blade Diameter 22 in, Drive Type Direct Drive, Maximum Airflow 3,543 cfm, Maximum Noise Level Not Applicable, Wattage 451 W, Coverage Area 1,831 sq ft, Rough Opening Type Square, For High-Static Pressure Applications Yes, High-Efficiency Motor Yes, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed

Restrictions

This item has been restricted from sale in the following states: AK, HI
