  9. Whole House Fan, Steel, 2-Speed, 533W, 120V

This item is Discontinued.

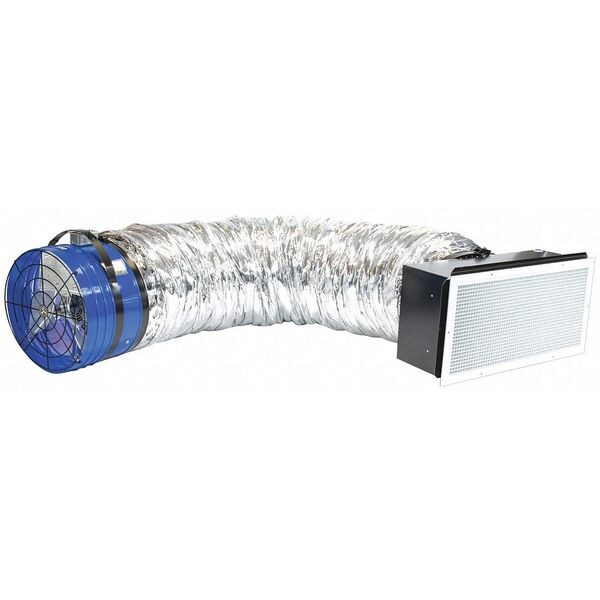

Quietcool Whole House Fan, Steel, 2-Speed, 533W, 120V QC CL-4700

Whole House Fan, Steel, 2-Speed, 533W, 120V (Discontinued)

  • Mfr # QC CL-4700
  • Zoro # G8795577
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QC CL-4700
Zoro #
G8795577
UPC #
811658020049
Country of Origin
United States

Dimensions

Blade Dia.
18 in
Power Cord Length (Ft.)
6
Duct Length
9 ft
Power Cord Length
6 ft
Manufacturer Warranty Length
10 yr
Duct Diameter
18 in
Grille Width
16 in
Overall Diameter
19 in
For Cut-Out Width
30 1/2 in
Overall Depth
32 in
For Cut-Out Height
14 1/2 in
Blade Diameter
18 in
Grille Length
32 in
Overall Width
19 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Type
Direct Drive
Fan Voltage
120V AC
Coverage (Square-Ft.)
1475 to 2205
CFM High
4,415
Motor Type
Permanent Split Capacitor
Propeller Material
Steel
Speed
2
Fits
16 in or 24 in Center Joists
Mounting Location
Ceiling
Item
Whole House Fan
Number of Blades
3
CFM Low
3,402
Housing Material
Steel
Includes
9 ft Duct, Accessory Bag, Damper Box, Window Lock
Drive Package Included
No
Hz
60
Housing Finish
Painted
Watts
551
Agency Compliance
UL Listed
Phase
1
Maximum Coverage Area
2,208 sq ft
Nameplate Voltage
120V AC
Includes Grill
Yes
Noise Level @ 0.100 in SP @ 5 ft
4.4 sones
Blade Material
Steel
Maximum Noise Level
1.8 sones
Supply Airflow @ 0.000 in SP
4,415 cfm
Maximum Airflow
4,415 cfm
Guard Type
Exhaust
Electrical Connection
Hardwired
Ventilation Type
Exhaust
Frequency
60 Hz
Guard Finish
Powder Coated
Duct Shape
Round
Assembled
Unassembled
Number of Fans
1
Noise Level @ 0.000 in SP @ 5 ft
4.4 sones
Control Type
Switch
Motor Enclosure
Open Dripproof
Guard Material
Steel
Drive Type
Direct Drive
Speed Controllable
No
Includes Dehumidistat
No
Exhaust Airflow @ 0.100 in SP
4,415 cfm
Exhaust Airflow @ 0.000 in SP
4,415 cfm
Full Load Current
3.54 A
Vent Design
Ducted
Includes Motor
Yes
Free Area
5.9 sq ft
Fan Style
Whole-House
Wattage
551 W
Standards
UL Listed
Frame Material
Steel
Number of Speeds
2
Grille Material
Aluminum
Coverage Area
2,207 sq ft
Rough Opening Type
Rectangular
Quiet Design
Yes
High-Efficiency Motor
No
For High-Static Pressure Applications
Yes

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design Yes, Number of Speeds 2, Nameplate Voltage 120V AC, Speed Controllable No, Blade Diameter 18 in, Drive Type Direct Drive, Maximum Airflow 4,415 cfm, Maximum Noise Level 1.8 sones, Wattage 551 W, Coverage Area 2,207 sq ft, Rough Opening Type Rectangular, For High-Static Pressure Applications Yes, High-Efficiency Motor No, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed
