  11. Analog Oven, 1600W, 120VAC, 12.5A

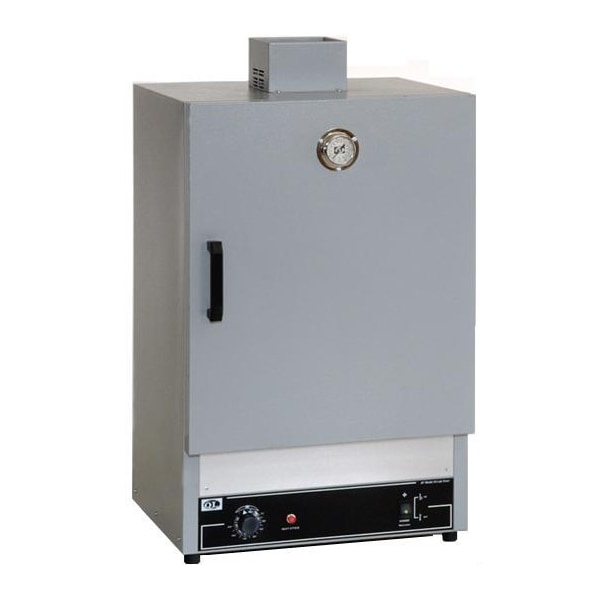

Quincy Lab Analog Oven, 1600W, 120VAC, 12.5A 40AF - main

Analog Oven, 1600W, 120VAC, 12.5A

  • Mfr # 40AF

  • Zoro # G2293037

product price: $1,327.17
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
16 1/4 in
Overall Height
35 in
Overall Width
20 in
Convection Type
Forced Air
Capacity
2.86 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40AF
Zoro #
G2293037
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
16 1/4 in
Overall Height
35 in
Overall Width
20 in
Overall Dimensions
33.5" x 20" x 16"
Chamber Width
18 in
Chamber Height
19.625 in
Inside Usable Dimensions
19.75" x 18" x 14"
Chamber Depth
14 in
Manufacturers Warranty Length
2 yr
Interior Width
18 in
Interior Depth
14 in
Interior Height
19 3/4 in

Details

Item
Analog Oven
Convection Type
Forced Air
Capacity
2.86 cu ft
Volume
2.86 cu ft
Wattage
1,550 W
Voltage
115V AC
Features
Resistive-Tubular Incoloy Heating Elements
Standards
cULus
Programmable
No
Capacity (ML)
81,000
Shelf Capacity
35 lb
Capacity (Cu.-Ft.)
2.86
Number of Shelves
3
Chamber Material
Aluminized Steel
Temp. Range (F)
Ambient +25 Degrees to 450 Degrees
Includes
(2) Adjustable Nickle Plated Wire Shelves, (4) Shelf Brackets
Material
Steel, Thermoplastic (Handle)
Power Consumption
1600W
Number of Doors
1
Temp. Range (C)
Ambient 25 Degrees to 232 Degrees
Amps
12.5 A
Housing Material
Steel
Door Material
Steel
Temp. Accuracy
+/- 6 Degrees F
Power Requirement
12.5A
Watts
1,550 W
Thermostat
Hydraulic
Temp. Range
Amb. +25 Degrees F to 232 Degrees C
Preheat Time
39 min to 232.22 Degrees C, 6 min to 150 Degrees C (15 sec), 8 min to 150 Degrees C (30 sec), 9 min to 100 Degrees C
Plug Type
5-15P
Product Type
Analog Oven
Temperature Setting - Maximum
232 Degrees C
Shelving Type
Wire
Minimum Top Clearance
18 in
Color
Gray
Shelf Adjustability
Adjustable
Minimum Side Clearance
4 in
Timer Duration - Maximum
39 min
Housing Finish
Powder Coated
Maximum Number of Shelves
20
Control Type
Analog Thermostat
Current
12.5 A
Display Type
Analog
Temperature Accuracy Tolerance
+/-3 Degrees C
Interior Material
Aluminized Steel
Timer Duration - Minimum
9 min
Temperature Setting - Minimum
-4 Degrees C
Frequency
50/60 Hz
Temperature Uniformity
+/-3 Degrees C @ 150 Degrees C
Number of Shelves Included
3
Maximum Load Capacity per Shelf
35 lb

Description

Analog Oven, Convection Type Forced Air, Temp. Range (C) Ambient 25 Degrees to 232 Degrees , Temp. Range (F) Ambient +25 Degrees to 450 Degrees , Overall Height 35 in, Overall Width 20 in, Overall Depth 16 1/4 in, Temp. Accuracy +/- 6 Degrees F, Chamber Height 19.625 in, Chamber Width 18 in, Chamber Depth 14 in, Amps 12.5 A, Voltage 115V AC, Watts 1,550 W, Capacity (Cu.-Ft.) 2.86, Capacity (ML) 81,000, Programmable No
