Shop QUINCY LAB

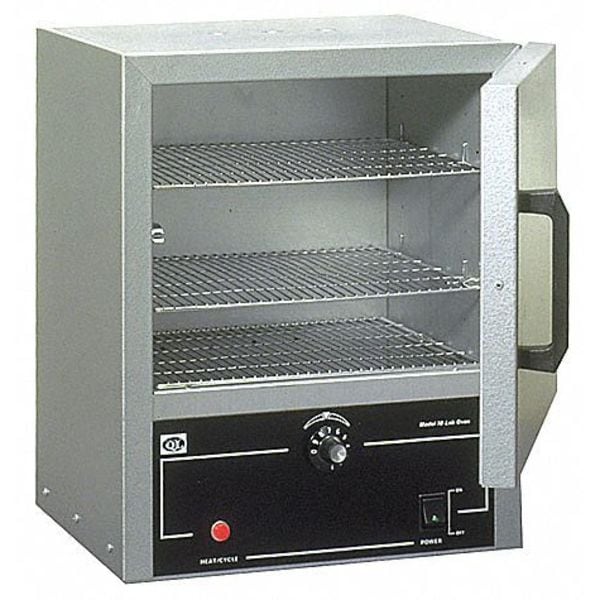

Analog Oven, 2.0 cu. ft.

  • Mfr # 30GC OVEN
  • Zoro # G0278096
product price:
$
1,136.99
/ea
Free Shipping & Returns

Key Features

Overall Depth
14 1/4 in
Overall Height
25 1/2 in
Overall Width
20 in
Convection Type
Gravity
Capacity
2 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30GC OVEN
Zoro #
G0278096
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
14 1/4 in
Overall Height
25 1/2 in
Overall Width
20 in
Chamber Height
16 in
Chamber Width
18 in
Chamber Depth
12 in
Overall Dimensions
25" x 20" x 14"
Inside Usable Dimensions
15.6" x 18" x 12"
Manufacturers Warranty Length
2 yr
Interior Height
15 5/8 in
Interior Depth
12 in
Interior Width
18 in
Fits Chest Size
Resistive-Tubular Incoloy Heating Elements

Details

Item
Lab Oven
Convection Type
Gravity
Capacity
2 cu ft
Volume
2 cu ft
Wattage
1,200 W
Voltage
120V
Features
Resistive-Tubular Incoloy Heating Elements
Standards
cULus
Programmable
Not Programmable
Shelf Capacity
35 lb
Temp. Range
25 Degrees F to 232 Degrees C
Power Requirement
10.43A
Number of Shelves
3
Amps
10.5 A
Temp. Range (F)
Ambient 25 Degrees to 450 Degrees F
Thermostat
Hydraulic
Material
Steel, Thermoplastic (Handle)
Watts
1,200 W
Number of Doors
1
Temp. Accuracy
+/-6 Degrees F
Capacity (ML)
57,000
Capacity (Cu.-Ft.)
2
Chamber Material
Aluminized Steel
Housing Material
Steel
Door Material
Steel
Includes
Spirit Filled Glass Thermometer
Power Consumption
1200W
Temp. Range (C)
Ambient 25 Degrees to 232 Degrees C
Preheat Time
23 min to 232.22 Degrees C, 4 min to 150 Degrees C (15 sec), 6 min to 100 Degrees C, 6 min to 150 Degrees C (30 sec)
Plug Type
5-15P
Temperature Accuracy Tolerance
+/-3 Degrees C
Temperature Setting - Minimum
-4 Degrees C
Color
Gray
Minimum Top Clearance
18 in
Frequency
50/60 Hz
Timer Duration - Maximum
23 min
Current
10.5 A
Number of Shelves Included
3
Interior Material
Aluminized Steel
Shelving Type
Perforated
Temperature Uniformity
+/-3 Degrees C @ 150 Degrees C
Maximum Load Capacity per Shelf
35 lb
Timer Duration - Minimum
6 min
Display Type
Analog
Housing Finish
Powder Coated
Shelf Adjustability
Adjustable
Temperature Setting - Maximum
232 Degrees C
Minimum Side Clearance
4 in
Maximum Number of Shelves
16
Product Type
Lab Oven
Control Type
Manual
Vacuum Pump Required
No
Number of Temperature Settings
1

Description

Lab Oven, Convection Type Gravity, Temp. Range (C) Ambient 25 Degrees to 232 Degrees , Temp. Range (F) Ambient +25 Degrees to 450 Degrees , Overall Height 25 1/2 in, Overall Width 20 in, Overall Depth 14 1/4 in, Temp. Accuracy +/- 6 Degrees F, Chamber Height 16 in, Chamber Width 18 in, Chamber Depth 12 in, Amps 10.5 A, Voltage 120V, Watts 1,200 W, Capacity (Cu.-Ft.) 2, Capacity (ML) 57,000, Programmable Not Programmable
