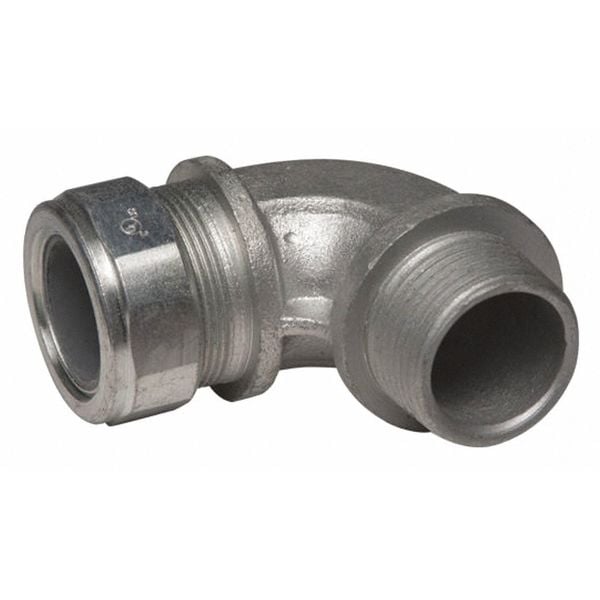

Conduit Fitting Cordgrip, 1 in, Liquid-Tight, Malleable Iron, Zinc Plated, Gray

Mfr # 3796-4
Zoro # G3757000

26.45

Sold in multiples of 10 for $264.50

Key Features

Conduit Fitting Type

Cordgrip

Trade Size

1 in

Material

Malleable Iron

Finish

Zinc Plated

Color

Gray

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3796-4
Zoro #: G3757000
UPC #: 050169983409
Country of Origin: China

Dimensions

Trade Size: 1 in
Overall Length: 3.88 in
Length: 3.88 in
Height (In.): 1-3/4 in
Cord Dia. Range: 0.85 to 0.95 in
Width: 1-3/4 in
Dimensions: 3.88 in x 1.75 in x 1.75 in
Height: 1.75 in

Details

Item: Conduit Fitting
Conduit Fitting Type: Cordgrip
Connection Type: Liquid-Tight
Material: Malleable Iron
Finish: Zinc Plated
Color: Gray
Hazardous Location: Yes
Standards: cULus Listed
Hazardous Location Rating: Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2
Application: For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cableRACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Features: Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available
Strain Relief Type: Liquidtight Strain Relief
Cable Range: .85 - .95 in
Nema Rating: NEMA 4
Certified Listed: cULus Listed

Description

Cordgrip Conn,90,1 In.,0.85-0.95,Gray
