  11. Cord Connector, 2-11/64" L, 3/4" Conduit
Shop All Strain Relief Connector
Raco

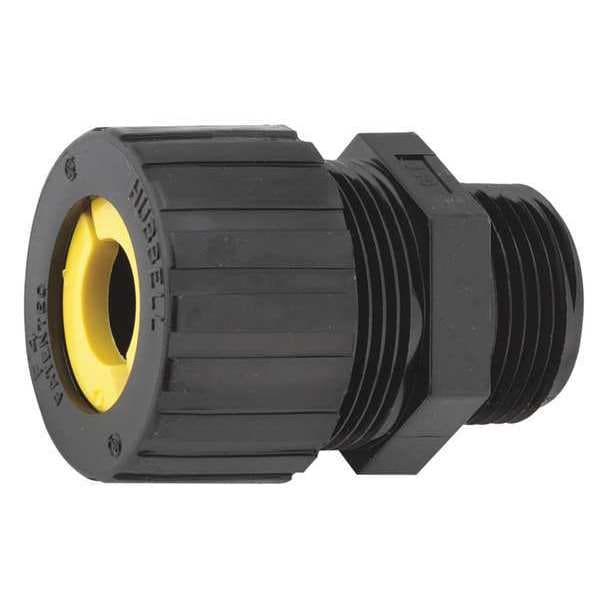

Cord Connector, 2-11/64" L, 3/4" Conduit

product price: $16.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector Straight
  • Hub Size 3/4 in MNPT
  • Cord Dia. Range 0.50 in to 0.63 in
  • Material Nylon
  • Box Connection 3/4 in MNPT
See all product information

Product Information

Dimensions

Hub Size 3/4 in MNPT
Cord Dia. Range 0.50 in to 0.63 in
Length - Box to End of Connector 1 5/8 in
Length - External Strain Relief No External Strain Relief
Length 2-11/64"
Conduit Size 3/4"
Compatible Conduit Trade Size 3/4 in
Form Size F3
Thread Size 3/4 in
Each - Width 1.484 in
Height 1.484 in
Width 1.484 in
Size 2.172 in x 1.484 in x 1.484 in
Trade Size 3/4 in
Dimensions 2.172 in x 1.484 in x 1.484 in

Details

Item - Cord Connector Liquid Tight Cord Connector
Item Liquid Tight Cord Connector
Style - Connector Straight
Material Nylon
Box Connection 3/4 in MNPT
Color Black
For Use With Dry or Wet Locations
Material - Cord Connector Nylon
Material - External Strain Relief No External Strain Relief
Gland Color Code Brown
Number of Cords 1
Standards UL 514B
Body Color - Cord Connector Black
Connector Type Straight
Strain Relief Type No External Strain Relief
Hazardous Location Rating Not Rated
Insulated Yes
For Maximum Cable OD 0.625 in
For Minimum Cable OD 0.5 in
Compatible Conduit Type Liquid Tight Cord Connector
Body Material Nylon
Grommet Material Neoprene
Connection Orientation Straight
Grommet Color Code Brown
Thread Type NPT Thread
Body Color Black
Collar Material Nylon
Environmental Rating Liquid Tight
Liquid Tight Yes
Thread-Type NPT Thread
Cable Range 0.500 - 0.625 in
Configuration Straight
Fitting Type Connectors
Certified Listed UL Listed;CSA Certified
Hazardous Rating(s) Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Product Type Commercial Fittings
Environmental Conditions Wet Location
Industry Standard(s) UL 514B
Standard UL 514B
Conduit Type Liquidtight
Features Nylon construction is lightweight and easy to use; Neoprene grommet; Resists most common industrial corrosives; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 3/4 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Black, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated Yes, Standards UL 514B, Hazardous Location Rating Not Rated
