Shop RACO

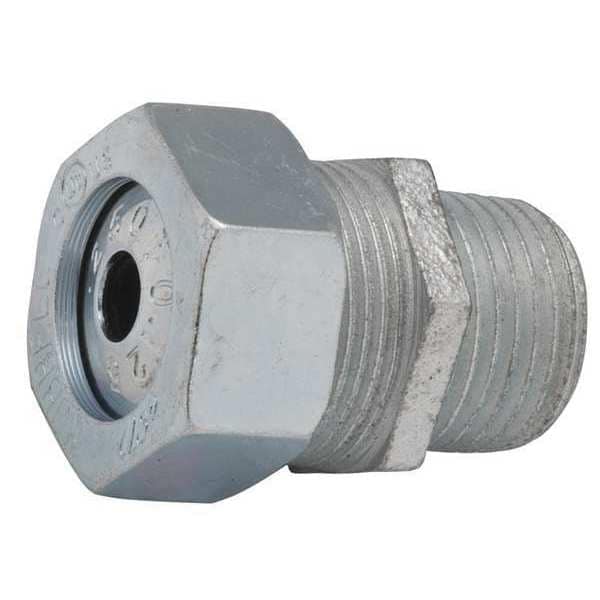

Cord Connector, Silver, 1-31/64" L, Steel

  • Mfr # 3703-1

  • Zoro # G5490241

product price:
$
11.45
/ea

Key Features

Hub Size
3/4 in
Material
Steel
Color
Silver
Length
1-31/64"
Standards
cULus
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3703-1
Zoro #
G5490241
UPC #
050169370315
Country of Origin
China

Dimensions

Hub Size
3/4 in
Length
1-31/64"
Length - Box to End of Connector
15/16 in
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.25 in to 0.38 in
Conduit Size
3/4"
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Form Size
F3
Dimensions
1.484 in x 1.406 in x 1.406 in
Width
1.406 in
Each - Width
1.406 in
Height
1.406 in
Size
1.484 in x 1.406 in x 1.406 in
Trade Size
3/4 in

Details

Item
Enhanced Rating Cord Connector
Material
Steel
Color
Silver
Standards
cULus
Insulated
No
Material - Cord Connector
Steel
Item - Cord Connector
Enhanced Rating Cord Connector
Strain Relief Type
No External Strain Relief
Gland Color Code
Imprinted
Body Color - Cord Connector
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Box Connection
3/4 in MNPT
Material - External Strain Relief
No External Strain Relief
Connector Type
Straight
Number of Cords
1
Style - Connector
Straight
Grommet Color Code
Imprinted
Body Material
Steel
Thread Type
NPT
Grommet Material
Neoprene
Connection Orientation
Straight
For Minimum Cable OD
0.25 in
Body Color
Silver
Collar Material
Steel
For Maximum Cable OD
0.375 in
Liquid Tight
Yes
Certified Listed
cULus Listed
Product Type
Commercial Fittings
Conduit Type
Liquidtight
Cable Range
0.250 - 0.375 in
Environmental Conditions
Wet Location
Fitting Type
Connectors
Standard
cULus Listed
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Features
All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for identification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts; Additional sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 3/4 in MNPT, Material - Cord Connector Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Imprinted, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 15/16 in, Insulated No, Standards cULus
