  11. Cord Connector, Silver, 1-51/64" L, Steel

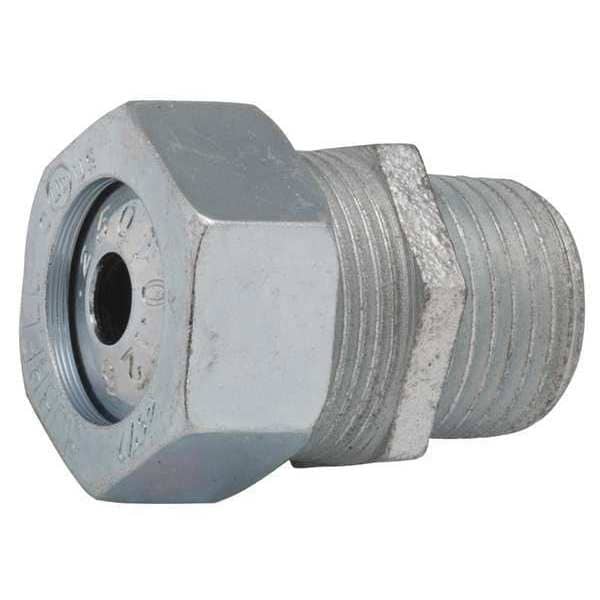

Raco Cord Connector, Silver, 1-51/64" L, Steel 3704-2 - main

Cord Connector, Silver, 1-51/64" L, Steel

  • Mfr # 3704-2

  • Zoro # G5490199

product price: $19.69
/ea

Key Features

Hub Size
1 in MNPT
Material
Steel
Color
Silver
Length
1-51/64"
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3704-2
Zoro #
G5490199
UPC #
050169370421
Country of Origin
China

Dimensions

Hub Size
1 in MNPT
Length
1-51/64"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.70 in to 0.85 in
Length - Box to End of Connector
1 3/16 in
Conduit Size
1"
Compatible Conduit Trade Size
1 in
Thread Size
1 in
Form Size
F4
Trade Size
1 in
Width
1.703 in
Each - Width
1.703 in
Height
1.703 in
Size
1.797 in x 1.703 in x 1.703 in
Dimensions
1.797 in x 1.703 in x 1.703 in

Details

Item
Enhanced Rating Cord Connector
Material
Steel
Color
Silver
Standards
cULus
Number of Cords
1
Connector Type
Straight
Box Connection
1 in MNPT
Material - Cord Connector
Steel
Item - Cord Connector
Enhanced Rating Cord Connector
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Body Color - Cord Connector
Silver
Gland Color Code
Imprinted
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Insulated
No
Style - Connector
Straight
Connection Orientation
Straight
Liquid Tight
Yes
For Maximum Cable OD
0.85 in
Thread Type
NPT Thread
Grommet Material
Neoprene
Collar Material
Steel
Body Color
Silver
For Minimum Cable OD
0.7 in
Body Material
Steel
Grommet Color Code
Imprinted
Certified Listed
cULus Listed
Environmental Conditions
Wet Location
Cable Range
.700 - .850 in
Standard
cULus Listed
Product Type
Commercial Fittings
Fitting Type
Connectors
Conduit Type
Liquidtight
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Features
All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for identification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts; Additional sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.70 in to 0.85 in, Box Connection 1 in MNPT, Material - Cord Connector Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Imprinted, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/16 in, Insulated No, Standards cULus
