  11. Cord Connector, Silver, 2-3/8" L, Iron

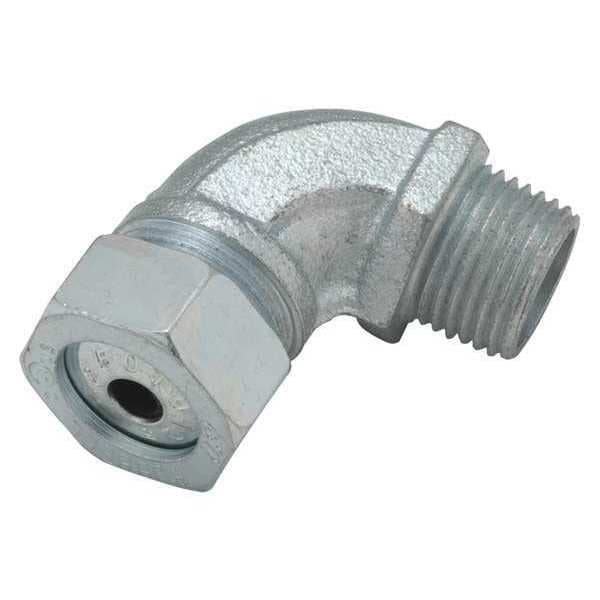

Raco Cord Connector, Silver, 2-3/8" L, Iron 3793-1 - main

Cord Connector, Silver, 2-3/8" L, Iron

  • Mfr # 3793-1

  • Zoro # G5490865

product price: $9.29
/ea

Key Features

Hub Size
3/4 in MNPT
Material
Iron
Color
Silver
Length
2-3/8"
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3793-1
Zoro #
G5490865
UPC #
050169379318
Country of Origin
China

Dimensions

Hub Size
3/4 in MNPT
Length
2-3/8"
Conduit Size
3/4"
Length - Box to End of Connector
1 3/4 in
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.25 in to 0.38 in
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Each - Width
1.204 in
Dimensions
2.375 in x 1.204 in x 2.227 in
Size
2.375 in x 1.204 in x 2.227 in
Width
1.204 in
Height
2.227 in
Trade Size
3/4 in

Details

Item
Enhanced Rating Cord Connector
Material
Iron
Color
Silver
Standards
cULus
Body Color - Cord Connector
Silver
Strain Relief Type
No External Strain Relief
Connector Type
Straight
Gland Color Code
Imprinted
Insulated
No
Material - External Strain Relief
No External Strain Relief
Style - Connector
90 Degrees
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
Material - Cord Connector
Malleable Iron
Box Connection
3/4 in MNPT
Item - Cord Connector
Enhanced Rating Cord Connector
Resistance Properties
Corrosion Resistant
Environmental Rating
Liquid Tight
Collar Material
Iron
For Minimum Cable OD
0.25 in
Grommet Material
Neoprene
Grommet Color Code
Imprinted
Body Color
Silver
Connection Orientation
90 Degrees
Body Material
Iron
Thread Type
NPT Thread
Liquid Tight
Yes
For Maximum Cable OD
0.375 in
Standard
cULus Listed
Product Type
Commercial Fittings
Conduit Type
Liquidtight
Environmental Conditions
Wet Location
Certified Listed
cULus Listed
Fitting Type
Connectors
Cable Range
0.250 - 0.375 in
Configuration
90 Degrees
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Features
All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for indentification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; 1/2 in. to 3/4 in. Malleable Iron bodies; 1/2 in. to 3/4 in. Steel nuts; Additional sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 3/4 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Imprinted, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/4 in, Insulated No, Standards cULus
