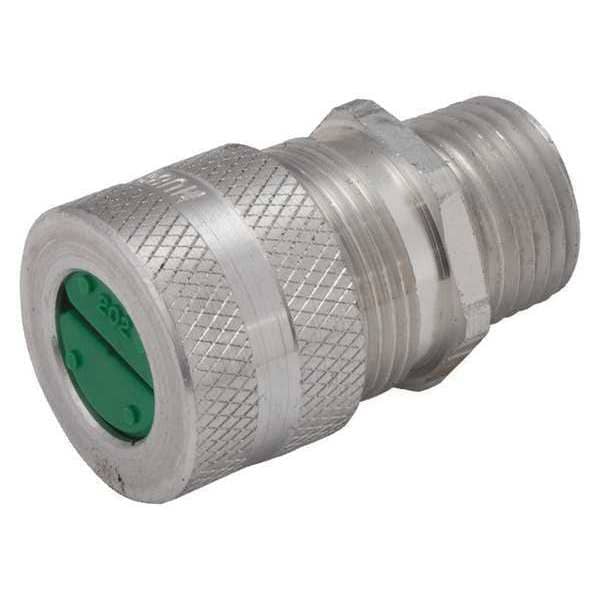

Cord Connector, Silver, 2-5/16" L, Aluminum

  • Mfr # 4804-0

  • Zoro # G5490786

product price:  $19.55
/ea

Key Features

Hub Size
1 in
Material
Aluminum
Color
Silver
Length
2-5/16"
Standards
UL 514B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4804-0
Zoro #
G5490786
UPC #
050169480403
Country of Origin
United States

Dimensions

Hub Size
1 in
Length
2-5/16"
Length - Box to End of Connector
1 3/16 in
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.38 in to 0.50 in
Conduit Size
1"
Compatible Conduit Trade Size
1 in
Form Size
F4
Thread Size
1 in
Dimensions
2.31 in x 1.75 in x 1.75 in
Height
1.75 in
Each - Width
1.750 in
Size
2.31 in x 1.75 in x 1.75 in
Width
1.750 in
Trade Size
1 in

Details

Item
Enhanced Rating Cord Connector
Material
Aluminum
Color
Silver
Standards
UL 514B
Number of Cords
1
Box Connection
1 in MNPT
Material - Cord Connector
Aluminum
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Insulated
No
Item - Cord Connector
Enhanced Rating Cord Connector
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Body Color - Cord Connector
Silver
Style - Connector
Straight
Gland Color Code
Blue
Connector Type
Straight
Grommet Color Code
Blue
Environmental Rating
Liquid Tight
For Maximum Cable OD
0.5 in
Body Material
Aluminum
Thread Type
NPT
Grommet Material
Neoprene
For Minimum Cable OD
0.375 in
Liquid Tight
Yes
Compatible Conduit Type
Liquid Tight Cord Connector
Body Color
Silver
Connection Orientation
Straight
Collar Material
Aluminum
Cable Range
0.375 - 0.500 in
Hazardous Rating(s)
Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2
Product Type
Commercial Fittings
Standard
UL 514B
Conduit Type
Liquidtight
Industry Standard(s)
UL 514B
Features
Aluminum construction provides a corrosion resistant installation; Innovative GOTHCA® ring incorporates a split hinge design to prevent friction and to provide strain relief; Neoprene grommet; Knurled compression nut allows the fittings to be hand tightened to UL requirements; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available
Configuration
Straight
Certified Listed
UL Listed;CSA Certified
Color Code
Blue
Environmental Conditions
Wet Location
Fitting Type
Connectors

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.38 in to 0.50 in, Box Connection 1 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Blue, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/16 in, Insulated No, Standards UL 514B
