This item is Discontinued.

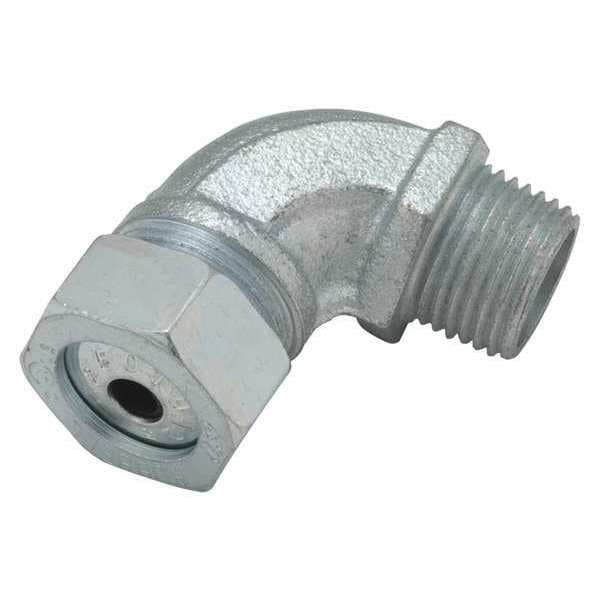

Raco Cord Connector, Silver, 3-3/4" L, Iron 3796-0

Cord Connector, Silver, 3-3/4" L, Iron (Discontinued)

  • Mfr # 3796-0
  • Zoro # G5490777
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3796-0
Zoro #
G5490777
UPC #
050169983362
Country of Origin
China

Dimensions

Hub Size
1 in MNPT
Length
3-3/4"
Conduit Size
1"
Length - Box to End of Connector
1 3/4 in
Cord Dia. Range
0.45 in to 0.56 in
Length - External Strain Relief
No External Strain Relief
Compatible Conduit Trade Size
1 in
Thread Size
1 in
Dimensions
3.75 in x 1.75 in x 1.75 in
Width
1.750 in
Height
1.75 in
Trade Size
1 in
Size
3.75 in x 1.75 in x 1.75 in
Each - Width
1.750 in

Details

Item
Enhanced Rating Cord Connector
Material
Iron
Color
Silver
Standards
cULus
Body Color - Cord Connector
Silver
Item - Cord Connector
Enhanced Rating Cord Connector
Connector Type
Straight
Strain Relief Type
No External Strain Relief
Box Connection
1 in MNPT
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
Style - Connector
90 Degrees
Gland Color Code
Green
Insulated
No
Material - Cord Connector
Malleable Iron
Material - External Strain Relief
No External Strain Relief
For Minimum Cable OD
0.45 in
Resistance Properties
Corrosion Resistant
Environmental Rating
Liquid Tight
For Maximum Cable OD
0.56 in
Collar Material
Iron
Body Color
Silver
Thread Type
NPT Thread
NEMA Rating
NEMA 4
Body Material
Iron
Grommet Material
Neoprene
Liquid Tight
Yes
Connection Orientation
90 Degrees
Grommet Color Code
Green
Certified Listed
cULus Listed
Standard
cULus Listed
Cable Range
.45 - .56 in
Application
For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Features
Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Description

Enhanced Rating Cord Connector, Cord Dia. Range 0.45 in to 0.56 in, Box Connection 1 in MNPT, Material - Cord Connector Malleable Iron, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 3/4 in, Insulated No, Standards cULus
