Shop RACO

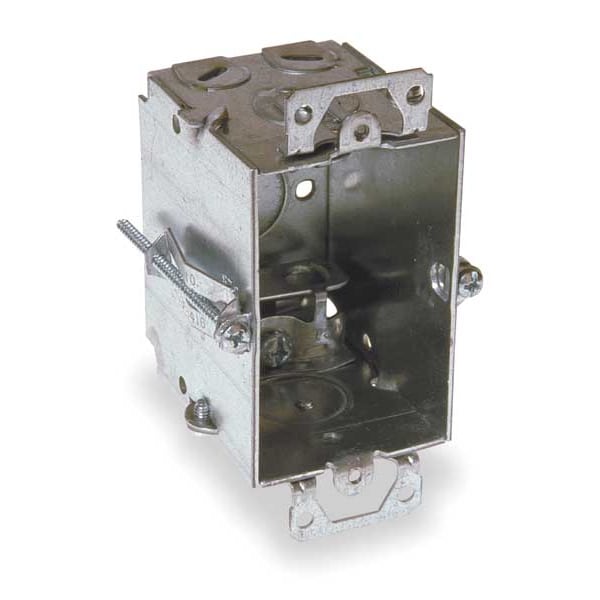

Electrical Box, 12.5 cu in, Switch Box Type, 1 Gang, Galvanized Zinc, Rectangular Shape

  • Mfr # 523
  • Zoro # G0852476
CAD Available
product price:
$
7.55
/ea

Key Features

CAD Drawing
Capacity
12.5 cu in
Box Type
Switch
Number of Gangs
1 Gang
Material
Galvanized Zinc
Overall Width
2 5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
523
Zoro #
G0852476
UPC #
050169005231
Country of Origin
Mexico

Dimensions

Overall Width
2 5/8 in
Overall Depth
2 1/2 in
Conduit Size
1/2 in
Nominal Length
3"
Nominal Width
2"
Nominal Depth
2-1/2"
Height
4.219 in
Box Height
4 1/4 in
Overall Height
4 1/4 in
Box Width
2 5/8 in
Box Depth
2 1/2 in

Details

Item
Electrical Box
Capacity
12.5 cu in
Box Type
Switch
Number of Gangs
1 Gang
Material
Galvanized Zinc
Box Shape
Rectangular
Color
Gray
Number of 1/2 In. Side Knockouts
0
Standards
UL Listed
Clamp Type
AC Clamps, FMC Clamps, KO Clamps, MC Clamps
Number of 1/2 In. Back Knockouts
1
Knockouts
1/2 in
Features
3 in. x 2 in., 2-1/2 in. deep; BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Supplied with one 1/2 in. knockout; Includes plaster ears and Griptite clips for "cut-in" or "old work" applications; 12.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls
Wiring System
Armored Cable/Metal Clad/MCI-A/Flex
Standard
UL Listed
Fire Resistance
Yes
Plaster Ears
Yes
Number of 1/2 in Side Knockouts
0
Number of 1/2 in Back Knockouts
1
For Construction Type
Remodel
CAD Available
Yes
Shell Material
Steel
Wire Color
Gray

Description

3 in. x 2 in. Switch Box, Gangable, 2-1/2 in. Deep with One 1/2 in. KO & AC/MC/Flex Clamps, Griptite, Old Work
•3 in. x 2 in., 2-1/2 in. deep
•BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
•Gangable switch boxes offer the option of constructing a box to hold two or more devices
•Supplied with one 1/2 in. knockout
•Includes plaster ears and Griptite clips for "cut-in" or "old work" applications
•12.5 cu. in. capacity
•Acceptable for use in 2-hour fire rated walls
