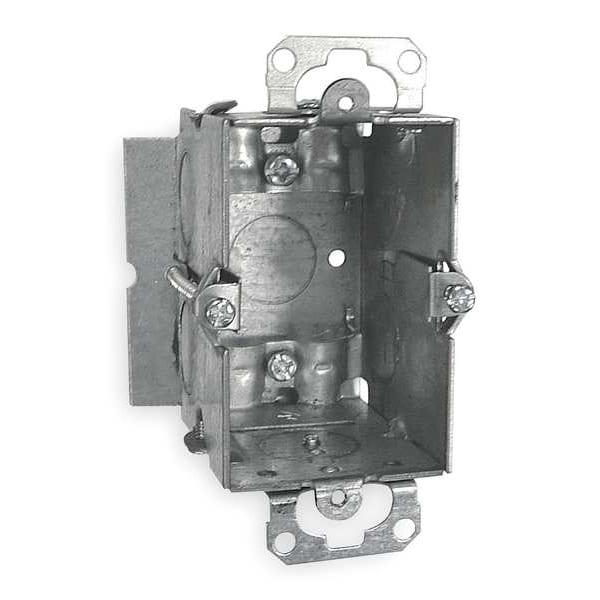

Electrical Box, 12.5 cu in, Switch Box Type, 1 Gang, Steel, Rectangular Shape

  • Mfr # 512
  • Zoro # G3008327
CAD Available
product price:
$
8.39
/ea

Key Features

CAD Drawing
Capacity
12.5 cu in
Box Type
Switch
Number of Gangs
1 Gang
Material
Steel
Overall Width
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
512
Zoro #
G3008327
UPC #
050169005125
Country of Origin
China

Dimensions

Overall Width
3 in
Overall Depth
2 11/16 in
Conduit Size
1/2 in
Nominal Depth
2-1/2"
Nominal Width
2"
Nominal Length
3"
Height
4.252 in
Box Height
4 1/4 in
Box Depth
2 11/16 in
Overall Height
4 1/4 in
Box Width
3 in

Details

Item
Electrical Box
Capacity
12.5 cu in
Box Type
Switch
Number of Gangs
1 Gang
Material
Steel
Box Shape
Rectangular
Color
Gray
Clamp Type
KO Clamps, NMSC Clamps
Number of 1/2 In. Back Knockouts
1
Standards
UL Listed
Number of 1/2 In. Side Knockouts
0
Features
3 in. x 2 in., 2-1/2 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; L clamps provided for non-metallic sheathed cable (NMSC); Supplied with one 1/2 in. knockout; Includes plaster ears and clips for "cut-in" or "old work" applications; 12.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls
Knockouts
1/2 in
Standard
UL Listed
Fire Resistance
Yes
Wiring System
Nonmetallic Sheathed Cable
Plaster Ears
Yes
Number of 1/2 in Side Knockouts
0
For Construction Type
Remodel
Number of 1/2 in Back Knockouts
1
CAD Available
Yes
Shell Material
Steel
Wire Color
Gray

Description

Electrical Box, Box Type Switch, Number of Gangs 1, Bracket Type Not Applicable, Capacity 12.5 cu in, Material Steel, Number of 1/2 In. Back Knockouts 1, Number of 1/2 In. Side Knockouts 0, Clamp Type KO Clamps, NMSC Clamps, Nominal Depth 2 1/2 in, Nominal Length 3 in, Nominal Width 2 in, Color Gray, Standards UL Listed
