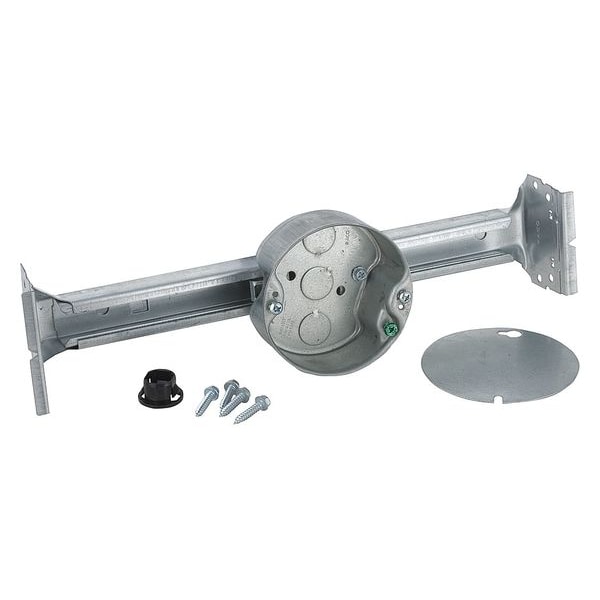

Electrical Box, 15.8 cu in, Ceiling Box Type, 2 Gangs, Galvanized Steel, Round Shape

  • Mfr # 926-1
  • Zoro # G0712293
product price:
$
18.15
/ea

Key Features

Capacity
15.8 cu in
Box Type
Ceiling
Number of Gangs
2 Gangs
Material
Galvanized Steel
Length
15 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
926-1
Zoro #
G0712293
UPC #
050169092613
Country of Origin
China

Dimensions

Length
15 in
Overall Width
22 1/2 in
Overall Depth
1 1/2 in
Conduit Size
1/2 in
Nominal Width
4"
Nominal Depth
1-1/2"
Nominal Length
4"
Height
2.88 in
Box Diameter
4 in
Box Depth
1 1/2 in
Overall Height
4 in

Details

Item
Electrical Box
Capacity
15.8 cu in
Box Type
Ceiling
Number of Gangs
2 Gangs
Material
Galvanized Steel
Box Shape
Round
Color
Gray
Number of 1/2 In. Side Knockouts
0
Bracket Type
Adjustable Bar Hanger
Number of 1/2 In. Back Knockouts
2
Standards
CM, RoHS, UL Listed
Clamp Type
NM-B Clamps
Rated
Fan Rated
Knockouts
1/2 in
Features
Slides apart to accommodate joist spacing from 16 in. to 24 in., screws provided; Metal protection plate included; Nail spurs for easy brace positioning; #10-32, 1 in. long ceiling fan screws provided and #8-32 ceiling fixture mounting provisions; Supplied with three 1/2 in. knockouts; Easy installation, up front ground screw; Easy to follow instructions and mounting hardware included
Standard
UL Listed
Fixture Lbs., 24 in. Joist Span
90 lb.
Collection Name
THE INSIDER®; KWIK-BRACE®
Ceiling Fan Lbs., 16 in. Joist Span
70 lb.
Ceiling Fan Rated
Fan Rated
Raised Ground
Yes
Fixture Type
Ceiling;Light
Ceiling Fan Lbs., 24 in. Joist Span
70 lb.
Fixture Lbs.
90-210 lb.
Fixture Lbs., 16 in. Joist Span
210 lb.
Number of 1/2 in Side Knockouts
0
Number of 1/2 in Back Knockouts
2
For Construction Type
New Construction
Shell Material
Steel
Wire Color
Gray

Description

Electrical Box, Box Type Round Ceiling Pan, Number of Gangs 2, Bracket Type Adjustable Bar Hanger, Capacity 15.5 cu in, Material Steel, Number of 1/2 In. Back Knockouts 2, Number of 1/2 In. Side Knockouts 0, Clamp Type NM-B Clamps, Rated Fan Rated, Nominal Depth 1 1/2 in, Nominal Length 4 in, Nominal Width 4 in, Color Gray, Standards CM, RoHS, UL Listed
