  11. Liquid Tight Connector, 1/2in., Silver, Length: 1-11/32"

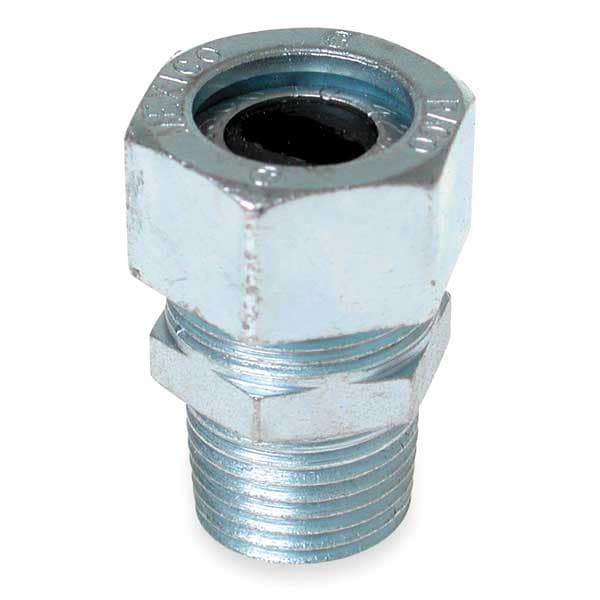

Raco Liquid Tight Connector, 1/2in., Silver, Length: 1-11/32" 2462 - main

Liquid Tight Connector, 1/2in., Silver, Length: 1-11/32"

  • Mfr # 2462

  • Zoro # G2688262

product price: $10.29
/ea

Key Features

Material
Steel
Box Connection
1/2 in MNPT
Material - Cord Connector
Steel
Strain Relief Type
No External Strain Relief
Hazardous Location Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2462
Zoro #
G2688262
UPC #
050169024621
Country of Origin
China

Dimensions

Length
1-11/32"
Cord Dia. Range
0.22 in to 0.42 in
Length - External Strain Relief
No External Strain Relief
Conduit Size
1/2"
Length - Box to End of Connector
1 in
Hub Size
1/2 in MNPT
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
UF Wire Size
2#14; 2#12
Trade Size
1/2 in.
Dimension C
1/2 in. - 14
Dimension A
1.25 in.
Dimension B
1.75 in.
Dimensions
0.75 in x 1.25 in x 1.25 in
Height
1.25 in
Width
1.25 in

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1/2 in MNPT
Material - Cord Connector
Steel
Strain Relief Type
No External Strain Relief
Hazardous Location Rating
Not Rated
Insulated
No
Color
Silver
Material - External Strain Relief
No External Strain Relief
Connector Type
Straight
Gland Color Code
No Code
Number of Cords
1
Standards
CSA C22.2 No. 18, UL 514B
Item - Cord Connector
Liquid Tight Cord Connector
Style - Connector
Straight
Body Color - Cord Connector
Silver
For Use With
Underground Feeder
Body Color
Silver
Liquid Tight
Yes
Resistance Properties
Corrosion Resistant
Collar Material
Steel
Thread Type
NPT Thread
Grommet Color Code
No Code
Grommet Material
Neoprene
Connection Orientation
Straight
For Minimum Cable OD
0.225 in
Body Material
Steel
For Maximum Cable OD
0.425 in
Min Grommet Opening
.225 in.
Max Grommet Opening
.425 in.
Grommet Opening Maximum
.425 in
Features
Rugged metallic construction will last the life of the installation.; Zinc electro plated for corrosion resistance; Steel construction; 1/2 in. trade size; UF wire size: 2 #14 - 2 #12
Grommet Opening Minimum
.225 in
Fitting Type
Connectors
Conduit Type
Service Entrance
Certified Listed
UL ListedCSA Certified
Accessory Type
Fitting
Industry Standard(s)
UL 514B

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.22 in to 0.42 in, Box Connection 1/2 in MNPT, Material - Cord Connector Steel, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, Length - Box to End of Connector 1 in, Insulated No, Standards CSA C22.2 No. 18, UL 514B, Hazardous Location Rating Not Rated
