  11. High/Low Pressure Control, 120/240V

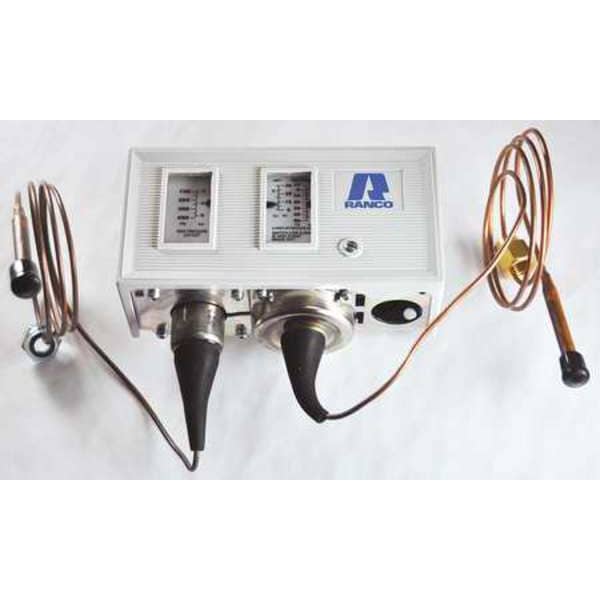

Ranco High/Low Pressure Control, 120/240V o12-1594 - main

High/Low Pressure Control, 120/240V

  • Mfr # o12-1594

  • Zoro # G4268783

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Switch Type
SPST
Low Pressure Range (PSIG)
10 to 100
High Pressure Range (PSIG)
150 to 450
High Pressure Differential (PSIG)
70 Fixed
Low Pressure Differential (PSIG)
10 Fixed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
o12-1594
Zoro #
G4268783
UPC #
662013922610
Country of Origin
Mexico

Dimensions

Capillary Tube Length
36 in
Pressure Connection Size
1/4 in

Details

Item
Dual Pressure Control
Switch Type
SPST
Low Pressure Range (PSIG)
10 to 100
High Pressure Range (PSIG)
150 to 450
High Pressure Differential (PSIG)
70 Fixed
Low Pressure Differential (PSIG)
10 Fixed
Mounting
Bracket or Flush-Mount Vertical or Horizontal
Voltage
120/240
Reset High
Manual
Includes
Color Coded Flare Nuts, Front Located Captive Cover Screws, Easy-To-Read Scales, Super Cap Capillary Protection System
For Use With
Commercial Refrigeration and Air Conditioning
Pressure Connection
Color Coded 1/4 inch Flare Nuts
Limited Knob Adjustment
Cut-out
Characteristics
Exclusive Convertible Reset for Manual or Automatic High Pressure Reset, Nema 1 Enclosure
Main Switch On Time (Sec.)
1-110
Reset Low
Manual
Main Switch Off Time (Sec.)
1-110
Product Type
Dual Pressure Control
Pressure Type
Differential
Maximum Differential Pressure - High Side
70 psi
Maximum Pressure Range - Low Side
100 psi
Pressure Connection Type
Flare
Contact Form
SPST
Maximum Differential Pressure - Low Side
10 psi
Reset Type - Low Side
Manual Reset
Pressure Connection Gender
Female
Compatible Refrigerant
Commercial Refrigerants
NEMA Rating
1
Minimum Pressure Range - Low Side
10 in Hg
Maximum Pressure Range - High Side
450 psi
Contact Rating (AC)
24 A @ 120/240V
Bellows Material
Copper
Series
O Series
Rated Voltage
120V AC, 240V AC
Minimum Pressure Range - High Side
150 psi
Mounting Orientation
Horizontal, Vertical
Reset Type - High Side
Manual Reset

Description

Dual Pressure Control, Product Type Dual Pressure Control, Pressure Type Differential, Minimum Pressure Range - Low Side 10 in Hg, Maximum Pressure Range - Low Side 100 psi, Minimum Differential Pressure - Low Side Not Applicable, Maximum Differential Pressure - Low Side 10 psi, Minimum Pressure Range - High Side 150 psi, Maximum Pressure Range - High Side 450 psi, Minimum Differential Pressure - High Side Not Applicable, Maximum Differential Pressure - High Side 70 psi
