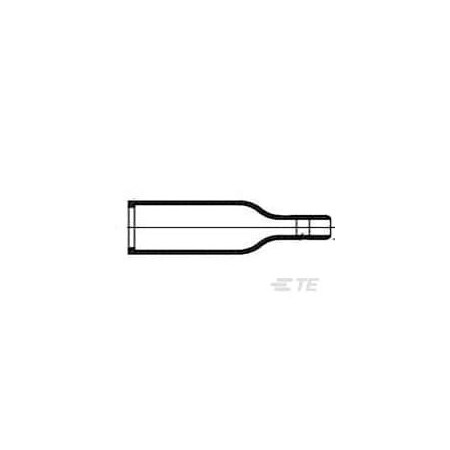

Heat Shrink Lipped Boot, 1.22 in, Black, 2.63 in (Discontinued)
- Mfr # 202D142-3-60-0-CS5077
- Zoro # G700951661
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202D142-3-60-0-CS5077
Zoro #
G700951661
UPC #
-
Country of Origin
Mexico
Dimensions
Length
2.63 in
Wire/Cable Outside Diameter
.31 in,.35 in,.39 in,.43 in,.47 in,.55 in,10 mm,11 mm,12 mm,14 mm,8 mm,9 mm
Connector or Backshell Outside Diameter
.79 in,.87 in,.94 in,1.02 in,20 mm,22 mm,24 mm,26 mm
Details
Item
Heat Shrink Lipped Boot
Shrink Tubing I.D. After Shrinking
0.70/0.28 in
Material
Semi-Rigid Modified Polyolefin
Color
Black
Temp. Range
-55° to 135°C
Min. Shrink Temp.
125°C
Shrink Tubing I.D. Before Shrinking
1.22 in
Fluid/Chemical Resistance
Occasional exposure to fluids
Molded Part Shape
Straight
Material Code
3
Molded Part Shape Code
202
Material Systems Code
10
Approved Standards
BS-G-198-5-DA,DEF Std 59-97 Issue 3 Type DA,SAE AS I 81765/1, Type I,UL 224, File E85381
