Raychem

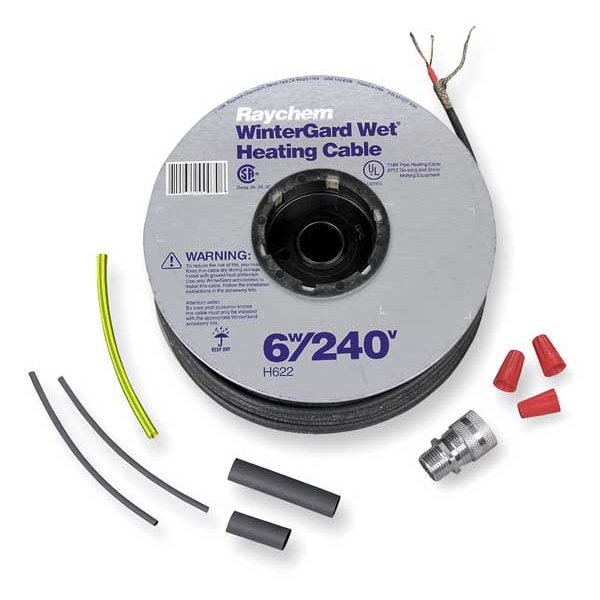

Electric Heating Cable Kit, 240VAC, 100 ft Length

original price: $799.99
5% off
new price: $752.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Location Wet or Dry
  • Cable Length 100 ft
  • Max. Circuit Length 400 ft
  • Heater Voltage 240VAC
  • Includes Power Connection Kit, Roll of Application Tape, Splice and Tee Kit
See all product information

Product Information

Dimensions

Cable Length 100 ft
Max. Circuit Length 400 ft
Overall Width 7/16 in

Details

Item Electric Heating Cable Kit
Mounting Location Wet or Dry
Heater Voltage 240VAC
Includes Power Connection Kit, Roll of Application Tape, Splice and Tee Kit
Amps per Foot @ 40F 0.03 A
Standards CCSA US
For Use With H900, H903, H910, H912, H913, H914, H915
Features Self Regulating, Automatically Adjust Heat Output
Watts per Foot @ 40F 6 W
Amps per Cable @ 40F 0.03 A
Watts per Cable @ 40F 6 W
Number of Conductors 2
Phase 1
Voltage 240V AC
Cable Material Conductive Carbon
Wattage Output 6 W
For Use Outdoors Indoor/Outdoor
NEMA Plug Configuration Hardwired
Frequency 50 Hz
Color Black
Cable Cover Material Rubberized Polymer
Min. Operating Temp. -40 Degrees F
Max. Operating Temp. 150 Degrees F
Cable Type Self-Regulating
For Use Indoors/Outdoors Indoor/Outdoor

Description

Electric Heating Cable Kit, Cable Type Self-Regulating, Cable Length 100 ft, Indoor/Outdoor, NEMA Plug Configuration Hardwired, 6 W Watts per Foot @ 40F, Voltage 240V AC, Includes Power Connection Kit, Roll of Application Tape, Splice and Tee Kit, 6 W Watts per Cable @ 40F, 0.03 A Amps per Cable @ 40F, 0.03 A Amps per Foot @ 40F, Cable Cover Material Rubberized Polymer, Cable Material Conductive Carbon, Frequency 50 Hz, Max. Circuit Length 400 ft, Max. Operating Temp. 150 Degrees F
