Product Information
MFR #

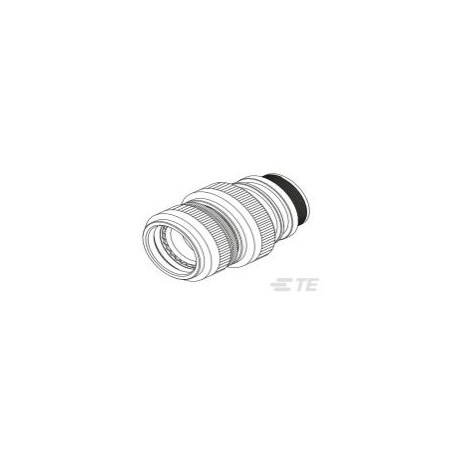

STXR40SJ00-1412AI
Zoro #
G400962066
UPC #
-
Country of Origin
United States
Dimensions
Adapter Entry Size
12
Cable Entry Diameter
.2 “ 19.1 mm[.01 “ .75 in]
Cable Diameter Range
9.5 “ 15.2 mm[.375 “ .6 in]
Connector Shell Size
15,D
Details
Operating Temperature Range
-65 “ 260 °C[-85 “ 500 °F]
Overbraid Termination
Tinel-Lock Ring
Adapter Plating Material
Passivated (SAE AMS-QQ-P-35 or MIL-S-5002)
Adapter Angle
Straight
Salt Spray Resistance
1000 Hr
Backshell Material
Corrosion Resisting Steel
Pluggable I/O Accessory Type
Tinel-Lock Adapter
Termination Device Type
Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
TE Adapter Code
40
Connector General Specification Number
MIL-DTL-38999 Series III/Class C,F,K,W,MIL-DTL-38999 Series IV/Class C,F,W,MIL-DTL-38999 Series IV/Class C,W,MIL-DTL-38999 Series IV/Class F,W
Termination Device Included
TR12AI
Connector Detail Specification Number
D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47
