RVM-100 Transom Mount Transducer

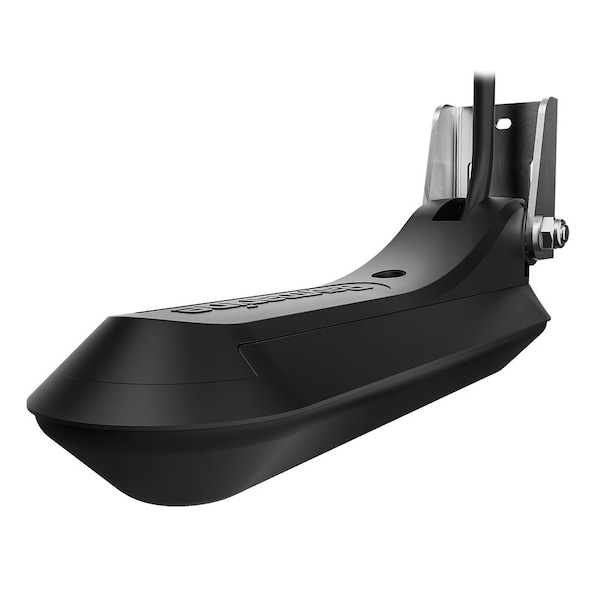

RVM-100 Transom Mount Transducer RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters. The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system AHRS that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings. The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps. For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket A80480 and spacer kit A80482 are available. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module Features: 600-Watt traditional CHIRP Designed for transom mounting on outboard boats Stainless Steel mounting bracket with an integrated kick-up feature 8M Cable
