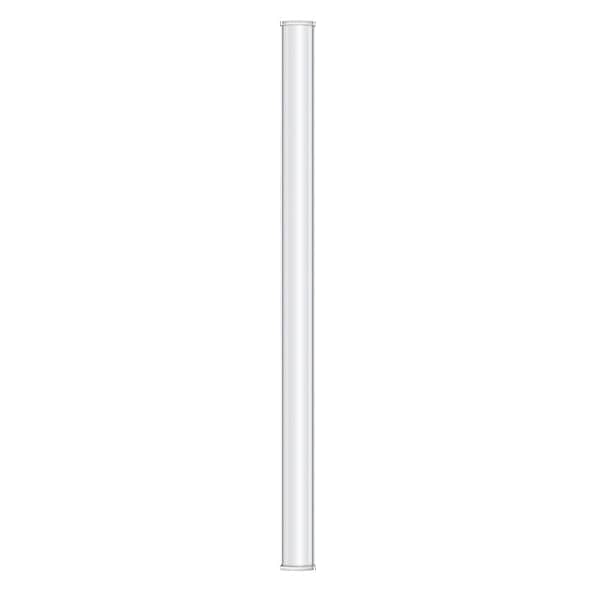

LED Linear Fixture, 4 ft L, 3300 lm, 27W

Mfr # ST4B3208DU50
Zoro # G7719769

188.99

/ea

Free Shipping & Returns

Key Features

Voltage

120/277V AC

Dimmable

Yes

Color Temperature

5000 K

Fixture Voltage

120/277

Lighting Certification

DLC 5.0

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ST4B3208DU50
Zoro #: G7719769
UPC #: -
Country of Origin: Korea, Republic of

Dimensions

Nominal Length: 4 ft
Height: 2-35/64"
Nominal Height: 2 9/16 in
Nominal Width: 3 1/8 in
Length: 47 1/2 in
Width: 3-7/64"
Overall Width: 3 1/8 in
Overall Height: 2 1/2 in
Overall Length: 47 1/2 in
Manufacturers Warranty Length: 5 yr
Wire Rope Length: 47 1/2 in

Details

Item: LED Linear Fixture
Voltage: 120/277V AC
Dimmable: Yes
Color Temperature: 5000 K
Lumens: 3,300 lm
Fixture Voltage: 120/277
Lighting Certification: DLC 5.0
Standards: FCC, TAA, UL
Emergency Battery Backup: No
Color Temp.: 5000 K
Green Environmental Attribute: RoHS 2011/65/EU Compliant
Dimmable / Non-Dimmable: Dimmable
Fixture Housing Material: Aluminum
Fixture Housing Color: Silver
Color Rendering Index: 85
Lamp Watts - Fixtures: 27.0 W
Rated Life: 50,000 hr
Number of Light Bars: 0
Lumens Per Watt: 122.0
Linkable Up To: Unlinkable
Temp. Range: -10 Degrees to 40 Degrees C
Light Color: Daylight
LED Replacement For: (4) Lamp T8
Fixture Temp. Range: 14 Degrees to 104 Degrees F
Lighting Technology: LED
Max. Fixture Wattage: 27 W
Fixture Type - Decorative and Surface Mount Fixtures: Strip Light
Green Certification or Other Recognition: DesignLights Consortium (DLC)(R) Listed
Item - Decorative and Surface Mount Fixtures: LED Surface Mount Fixture
Warranty: 5 yr
Emergency Back Up Battery: No
IP Rating: Not Rated
Fixture Warranty: 5 yr
Fixture Rated Life: 50,000 hr
Lumens per Watt: 122.2 lm/W
Fixture Type: Strip Light
Series: ST
Dimming Method: 0-10V
Lens Shape: Architectural
Sensor Type: Occupancy Sensor Compatible
Light Technology: LED
Bulb Included: Integrated LED
Housing Material: Aluminum
Ballast Start Type: No Ballast
Beam Angle: 120 Degrees
For Bulb Type: Integrated LED
Mounting Style: Surface
Housing Color: Gray
Lens Type: Glare Reducing Diffuser
Linkable: No
Finish: Unfinished
Fixture Ballast Type: No Ballast Required
Lumen Selectable: Not Selectable
Ambient Temperature - Maximum: 104 Degrees F
Ballast Type: No Ballast Required
Mounting Hardware Type: (6) Screws
Light Output: 3,300 lm
Maximum Fixture Wattage: 27 W
Color Selectable: Not Selectable

Description

4 ft, Lens Shape Architectural, 5000K, 3,300 lm, 122.2 lm/W, Max. Fixture Wattage 27 W, LED, Sensor Type Occupancy Sensor Compatible, Mounting Style Surface, Linkable No, For Bulb Type Integrated LED, LED Replacement For (4) Lamp T8, Bulb Included Integrated LED, Dimmable Yes, ST
