  11. Tapcon Masonry Screw, 1/4" Dia., Hex, 1-1/4" L, 410 Stainless Steel Silver Climashield, 100 PK
Shop All Concrete Anchor Screws
Red Head

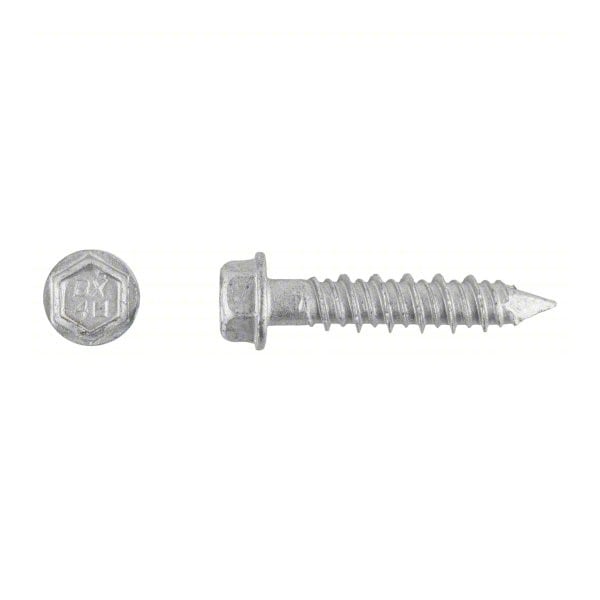

Tapcon Masonry Screw, 1/4" Dia., Hex, 1-1/4" L, 410 Stainless Steel Silver Climashield, 100 PK

original price: $112.36
14% off
new price: $95.69
/pk 100, $0.96/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

Hex Head
External Hex Drive
  • Compatible Material Concrete; Brick; Block
  • Anchor Diameter 1/4"
  • Sub-Brand Tapcon
  • Material 410 Stainless Steel
  • Finish Silver Climashield
See all product information

Product Information

Dimensions

Anchor Diameter 1/4"
Overall Length 1-1/4"
Drill Bit Size 3/16 in
Minimum Installation Depth 1 in
Head Width 0.31 in
Body Length 1 1/4 in

Details

Item Masonry Screw
Compatible Material Concrete; Brick; Block
Sub-Brand Tapcon
Material 410 Stainless Steel
Finish Silver Climashield
Head Type Hex
Drive Type External Hex
Material Quality Standards ASTM B117
Ultimate Shear Strength (4,000 psi Concrete) 1,360 lb
Ultimate Tension Strength (4,000 psi Concrete) 800 lb
ICC Approved for Cracked Concrete No
Type Tapcon, Silver Climaseal
Seismic Approved No
ICC Approved for Un-Cracked Concrete No
Ultimate Tension (Lbs.) 800 lb
Max. Work Thickness 1 3/8 in
Material Grade 410
Edge Distance 1 1/4 in
Series Tapcon
Minimum Ultimate Tension Strength 750 lb
Maximum Ultimate Shear Strength 1,440 lb
System of Measurement Inch
Maximum Ultimate Tension Strength 950 lb
Removable Removable
Manufacturer Location Made in USA
Material Grade/Class 410
Tip Type Self-Threading
Screw Anchor Type Concrete Screw Anchor
Maximum Material Thickness 1/4 in
Minimum Ultimate Shear Strength 900 lb

Description

Concrete Anchor Screw, Anchor Diameter 1/4 in, Overall Length 1 1/4 in, Head Type Hex, Head Width 0.31 in, Head Diameter Not Applicable, Drive Type External Hex, Material Stainless Steel, Finish Silver Climashield, Material Grade/Class 410, Removable Removable, Compatible Material Block, Brick, Concrete, Drill Bit Size 3/16 in, Screw Anchor Type Concrete Screw Anchor, System of Measurement Inch, Maximum Material Thickness 1/4 in, Maximum Ultimate Shear Strength 1,440 lb
