Shop RED LION

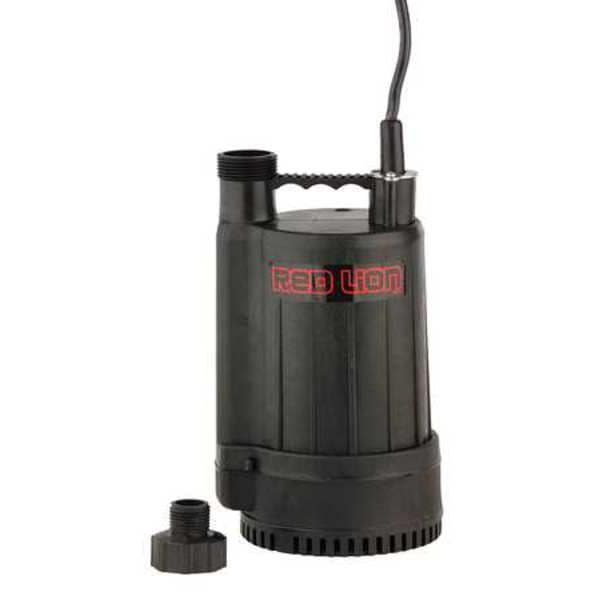

1/6 HP 1" M Plug-In Utility Pump 115 No Switch Included

  • Mfr # 14942731

  • Zoro # G4326497

product price:  $92.69
/ea

Key Features

Cord Length
8 ft
Discharge NPT
1" M
Housing Material
Reinforced Engineered Thermoplastic
HP
1/6
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14942731
Zoro #
G4326497
UPC #
010121144330
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
8 ft
Min. Sump Pit Dia.
6 in
Cord Size
18/3
Height
12"
Length
6"
Cord Length - Pumps
8 ft.
Diameter
6"
Max. Diameter Solids
1/8 in
Max. Dia. Solids
1/8"
Manufacturers Warranty Length
2 yr
Width
6-1/2"
Minimum Water Depth
3/16 in
Width at Widest Point
5 1/2 in
Body Dia.
6 in
Overall Height
10 in
Discharge Dia.
1 in
Solids Diameter - Maximum
1/8 in
Discharge External Diameter
1 in
Operating Water Depth - Minimum
3/16 in
Depth Pumped - Minimum
3/16 in
Body Diameter
5 1/2 in
Sump Pit Diameter - Minimum
6 in

Details

Discharge NPT
1" M
Housing Material
Reinforced Engineered Thermoplastic
HP
1/6
Hz
60
Impeller Material
Glass Fiber Reinforced Plastic
Includes
3/4 in GHT
Max. Head
25 ft
Motor RPM
3600
Motor Type
PSC
Shaft Seal
Carbon/Ceramic
Voltage
115
Phase
Single
Input Phase AC
1
Handle
Yes
Duty
Continuous
Item
Plug-In Utility Pump
Agency Compliance
cCSAus
Switch Type
No Switch Included
GPM of Water @ 15 Ft. of Head
13.8
Amps
2.30
GPM of Water @ 5 Ft. of Head
20
Max. Head - Pumps
25 ft.
Cord Type
SJTW
Pump RPM
3600
Thermal Protection
Automatic
Insulation Class
A
Impeller Material - Pumps
ABS
Voltage - Pumps
120VAC
Switch Type - Pumps
No Switch Included
GPM of Water @ 20 Ft. of Head
9.2
Shaft Seal Material - Pumps
Carbon, Ceramic
Bearing Type
Double Ball
Pump Body Material
ABS
Amps - Pumps
2.30
GPM of Water @ 10 Ft. of Head
17.5
Max. Liquid Temp.
120 Degrees F
Item - Dewatering Pumps
Utility/Dewatering Pump
Application
Nonflammable Liquids
Phase - Pumps
1
Body Material
Plastic
Discharge Gender
Male
Rated Voltage
115V AC
Switch Actuation
No Switch Included
Flow Rate @ 20 Ft. of Head
9.2 gpm
Discharge Standard
NPT
Flow Rate @ 5 Ft. of Head
20 gpm
RPM
3,600 RPM
Flow Rate @ 10 Ft. of Head
17.5 gpm
Discharge
1 in MNPT
Duty Cycle
Continuous
Flow Rate @ 15 Ft. of Head
13.8 gpm
Pump Type
Dewatering/Utility
Motor Housing Material
Plastic
Current
2.00 A
Includes Garden Hose Adapter
Garden Hose Adapter Included
Flow Rate - Maximum
21 gpm
Volute Material
Plastic
Shaft Seal Material
Carbon/Ceramic
Flow Rate @ 5 ft of Head
20.4 gpm
Flow Rate @ 10 ft of Head
17.8 gpm
For Media Type
Clear Water
Frequency
60 Hz
Rotation Speed - Maximum
3,450 RPM
Power Source
Corded Electric
Horsepower
1/6 hp
Discharge External Gender
Male
Series
RL-MP16
Liquid Temperature - Maximum
105 Degrees F
Feet of Head - Maximum
26 ft
Standards
cCSAus
Discharge External Standard
NPT
Power Source - TS Only
Corded Electric

Description

Plug-In Utility Pump, HP 1/6, Rated Voltage 115V AC, Hz 60, Phase - Pumps 1, Amps 2.30, Switch Actuation No Switch Included, Body Material Plastic, Impeller Material Glass Fiber Reinforced Plastic, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 20 gpm, Flow Rate @ 10 Ft. of Head 17.5 gpm, Flow Rate @ 15 Ft. of Head 13.8 gpm, Flow Rate @ 20 Ft. of Head 9.2 gpm, Max. Head 25 ft, Min. Sump Pit Dia. 6 in, Minimum Water Depth 3/16 in, Body Dia. 6 in
