Shop RED LION CONTROLS

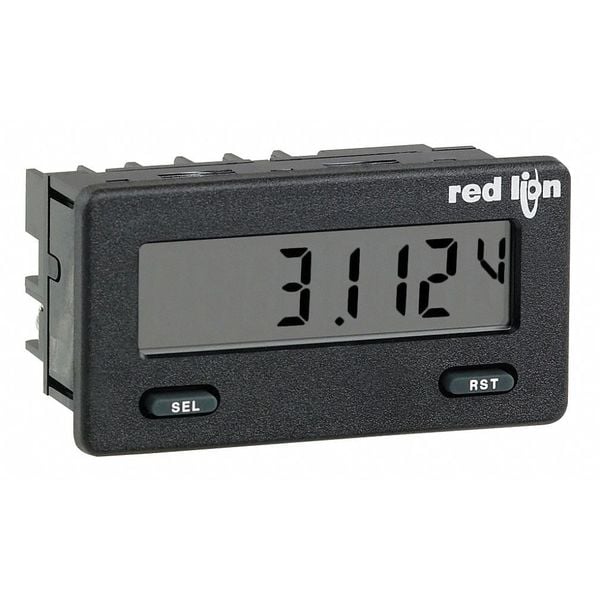

Digital Panel Meters, LCD, CUB5P

  • Mfr # CUB5PR00
  • Zoro # G204319417
product price:
$
279.99
/ea
Free Shipping & Returns

Key Features

Type
Process Meter
Input Range
0 to 10 V, 0 to 50 mA, 0(4) to 20 mA
Accuracy
0.1%
Display Span
-19,999 to 99,999
Display
LCD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CUB5PR00
Zoro #
G204319417
UPC #
-
Country of Origin
United States

Dimensions

Depth
1.86 in
Manufacturers Warranty Length
Limited Lifetime
Overall Height
1.54 in
Overall Width
1.54 in
Digit Height - Maximum
0.48 in
Cutout Width
1 19/64 in
Overall Depth
1.86 in
Cutout Height
2 11/16 in

Details

Item
Process Meter
Type
Process Meter
Input Range
0 to 10 V, 0 to 50 mA, 0(4) to 20 mA
Accuracy
0.1%
Display Span
-19,999 to 99,999
Display
LCD
Display Digits
5
Interface
RS-232, RS-485, USB
Connector Type
Screw Clamp Terminal
Series
CUB5
Style
CUB5P
Output
Setpoint
Mounting
Clip, Panel
Power Required
9V DC to 28V DC
Includes
Mounting Clip, Panel Gasket
NEMA Rating
NEMA 4X
Fits
2.15 in x 3 in Cutout
Standards
CE, EN 61010-1, EN 61010-2-030, EN 61326-1, RoHS Compliant, UL Listed
DC Voltage Input - Maximum
28 V DC
Product Type
Process Meter
Voltage Display - Minimum
0 V
Digital Display Screen Type
LCD
Number of Display Digits
5
DC Voltage Input - Minimum
9 V DC
Voltage Display - Maximum
10 V
Current Display - Minimum
0 mA
Display Span - Minimum
99,999
Display Span - Maximum
-19,999
Terminal Connection Type
Screw Clamp
Includes Mounting Hardware
Included
Current Display - Maximum
50 mA
NEMA Enclosure Rating
4X
AC Voltage Input - Maximum
28 V AC
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage

Description

Process Meter, Process Meter, Input Range 0 to 10 V, 0 to 50 mA, 0(4) to 20 mA, Accuracy 0.1 Percent, Display Span -19,999 to 99,999, Display Digits 5, LCD Display, Fits 2.15 in x 3 in Cutout, Connector Type Screw Clamp Terminal, Power Required 9 to 28 V DC, RS-232, RS-485, USB Interface, Output Setpoint, NEMA 4X / IP65 NEMA Rating, Depth 1.86 in, Mounting Clip, Panel, Style CUB5P, Includes Mounting Clip, Panel Gasket, Manufacturers Warranty Length Limited Lifetime
