This item is Discontinued.

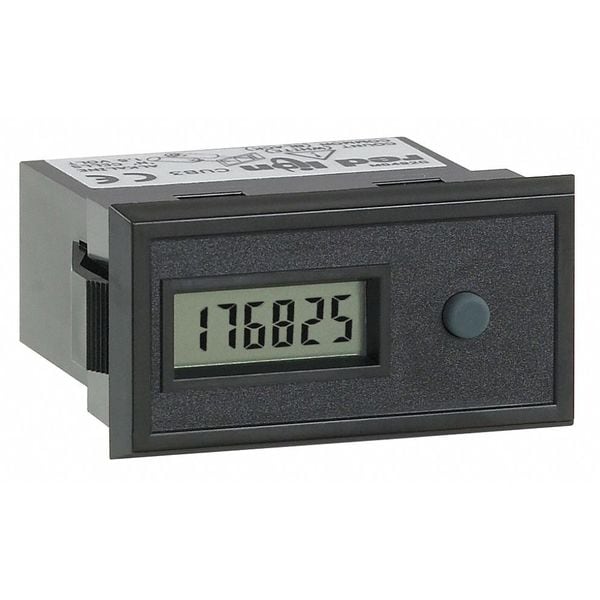

Red Lion Controls Electronic Counter, 6 Digits, LCD CUB30000

Electronic Counter, 6 Digits, LCD (Discontinued)

  • Mfr # CUB30000
  • Zoro # G4286055
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CUB30000
Zoro #
G4286055
UPC #
-
Country of Origin
United States

Dimensions

Character Height
0.2 in
Manufacturers Warranty Length
2 yr
Width
2.09 in
Depth
1.72 in
Height
1.10 in

Details

Item
Electronic Counter
Special Features
Operates From Switch Contact or NPN Open Collector Inputs, Self Powered, 2-Wire Connection, Eliminates Power Wiring
Accuracy
+/-1 digit
Output
None
Connector Type
12 in Wire Lead
Reset Type
Front Panel Push Button
Interface
None
NEMA Rating
1
Input Signal
1.5V DC Current Sinking, 30V DC Current Sourcing
Output Rating
None
Max. Counts per Second
100
Mounting
Snap-In
Display
LCD
Loop Supply Voltage
3V Lithium
Standards
CE Approved, Safety: IEC 1010-1, EN 61010-1, Immunity to EN 50082-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, ENV 50204, Emissions to EN 50081-2, EN 55011
Prescaling Range
0.00001 to 9.99999
Number of Digits
6
Scaler
No
Fits
1 in x 2 in Panel Cutout
Series
CUB3
Power Required
(2) 3V inN in Style Batteries
Includes
Instructions
Preset
no
Min. On/Off Pulse
5 msec

Description

Electronic Counter, Number of Digits 6, LCD Display, Character Height 0.2 in, Max. Counts per Second 100, Input Signal 1.5V DC Current Sinking, 30V DC Current Sourcing, Output Rating None, Output None, Mounting Snap-In, Height 1.10 in, Depth 1.72 in, Width 2.09 in, Series CUB3, Scaler No, Preset No, Power Required (2) 3V inN in Style Batteries, Min. On/Off Pulse 5 msec, Prescaling Range 0.00001 to 9.99999, Reset Type Front Panel Push Button, Interface None, Connector Type 12 in Wire Lead
