This item is Discontinued.

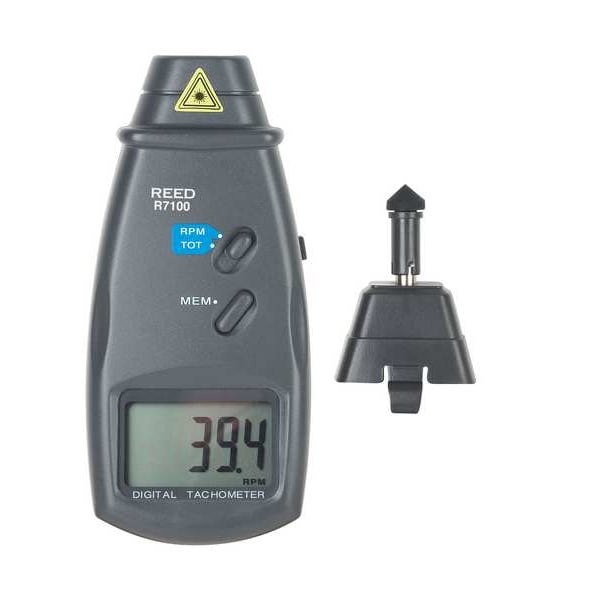

Reed Instruments Combination Contact / Laser Photo Tachometer with NIST Calibration Certificate R7100-NIST

Combination Contact / Laser Photo Tachometer with NIST Calibration Certificate (Discontinued)

  • Mfr # R7100-NIST
  • Zoro # G0643857
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R7100-NIST
Zoro #
G0643857
UPC #
-
Country of Origin
China

Dimensions

Manufacturer Warranty Length
1 yr
Battery Size
AA

Details

Item
Contact/Laser Tachometer,Nist Cert
Includes
Carrying Case, Funnel Adapter, Cone Adapters, Mounting Screws, Reflective Tape, Wheel Adapter
RPM Accuracy
+/-0.05% of Reading +1 Digit
Features
Built-In Laser Pointer Identifies Target Area, Internal Memory, Low Battery Indicator
RPM Resolution
0.1 RPM
Contact / Noncontact
Contact, Noncontact
Display
5 Digit LCD
Memory
Last/Min/Max
Standards
CE, Class III Laser
Contact RPM Range
0.5 to 19,999 rpm
Speed (FPM)
0.16 to 6415 fpm
Speed (M/Min)
0.05 to 1999.9 m/min
Speed Accuracy
+/-0.05% + 1 dgt.
Light Source
Laser
Calibration Certificate
NIST
Noncontact RPM Range
2.5 to 99,999
Temperature Range
32 Degrees to 122 Degrees F
Indicator
Low Battery
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Maximum Non-Contact RPM
99,999 RPM
Minimum Velocity Measured
0.17 fpm
Minimum Non-Contact RPM
2.5 RPM
Digital Display Screen Type
LCD
Maximum Contact RPM
19,999 RPM
Maximum Non-Contact Distance
1 5/8 ft
Number of Digits
5
Contact Adaptors Included
Cone Tip
Contact Type
Contact, Non-Contact
Maximum Velocity Measured
1,999.9 m/min
Calibration Certificate Type
NIST
Rotational Speed Measuring Units
m/min, RPM
Minimum Non-Contact Distance
1 5/8 ft
Batteries Included
Yes
Minimum Contact RPM
0.5 RPM
Number of Batteries Required
4

Description

Contact/Laser Tachometer,Nist Cert
