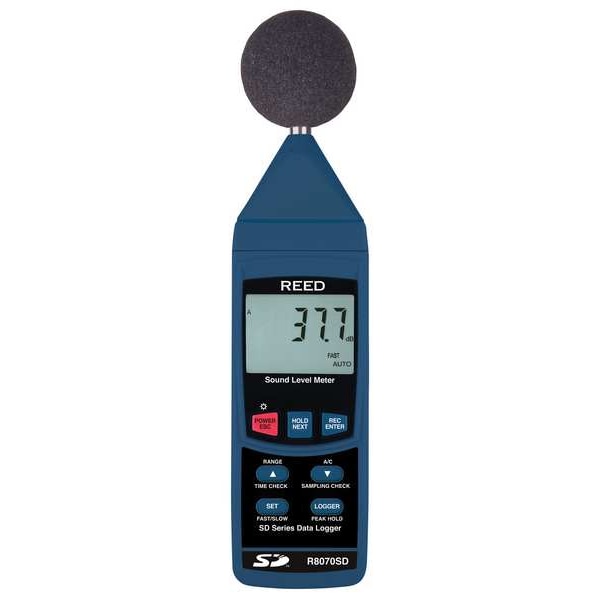

Reed Instruments Data Logging Sound Level Meter R8070SD - main

Data Logging Sound Level Meter

  • Mfr # R8070SD

  • Zoro # G601826716

product price: $375.99
/ea
Free Shipping & Returns

Key Features

Includes
Carrying Case, Data Logger, Windshield Ball
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-3.0 dB; +/-2.0 dB; +/-1.5 dB; +/-1.0 dB; +/-5.0 dB
Standards
CE, IEC 61672-1-2013 Class 3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R8070SD
Zoro #
G601826716
UPC #
800837004895
Country of Origin
Taiwan, Province of China

Dimensions

Microphone Size
1/2 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Battery Size
AA

Details

Item
Sound Level Meter
Includes
Carrying Case, Data Logger, Windshield Ball
Response Time
Fast, Slow
Frequency Weighting
A, C
Accuracy
+/-3.0 dB; +/-2.0 dB; +/-1.5 dB; +/-1.0 dB; +/-5.0 dB
Standards
CE, IEC 61672-1-2013 Class 3
Output Jack
RS-232, Yes
Built-In
Data Logger; Data Points; Microphone and Real Time Clock
Resolution
0.1 dB
Type
Digital; Real-time data logger with integrated SD memory card; Type 2; Alarm; Backlit Display
Operating Temp. Range
32 Degrees to 122 Degrees F
Frequency Range
31.5 Hz to 8 kHz
Calibration Certificate
No
Impedance
600 ohms
Records Up To
Unlimited Data Points
Display
4 Digit LCD
Battery Type
(6) AA
Interface
RS-232
Microphone Type
Electret Condenser
dB Range
35 to 130 dB
Sound Level Measurement Resolution
0.1 dB
Output Type
RS-232
Maximum Frequency Measurement
8 kHz
Sound Level Measurement Accuracy
+/-1 dB; +/-1.5 dB; +/-2 dB; +/-3 dB; +/-5 dB
Minimum Frequency Measurement
31.5 Hz
Battery Voltage
1.5V
Product Type
Sound Level Meter
Minimum Sound Level Measurement
30 dB
Range Type
Auto, Manual
Number of Batteries Required
6
Number of Records Stored
99
Includes Software
No Software Included
Number of Digits
4
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Digital Display Screen Type
LCD with Backlight
Batteries Included
Yes
Battery Chemistry
Alkaline
Battery Run Time
14 hr
Maximum Sound Level Measurement
130 dB

Description

Sound Level Meter, Includes Carrying Case, Data Logger, Windshield Ball, Digital Display Screen Type LCD with Backlight, Frequency Weighting A, C, Maximum Frequency Measurement 8 kHz, Maximum Sound Level Measurement 130 dB, Minimum Frequency Measurement 31.5 Hz, Minimum Sound Level Measurement 30 dB, Number of Records Stored 99, Sound Level Measurement Accuracy +/-1 dB; +/-1.5 dB; +/-2 dB; +/-3 dB; +/-5 dB, Sound Level Measurement Resolution 0.1 dB, Interface RS-232
