  9. Digital Manometer, Gauge / Differential, 30psi

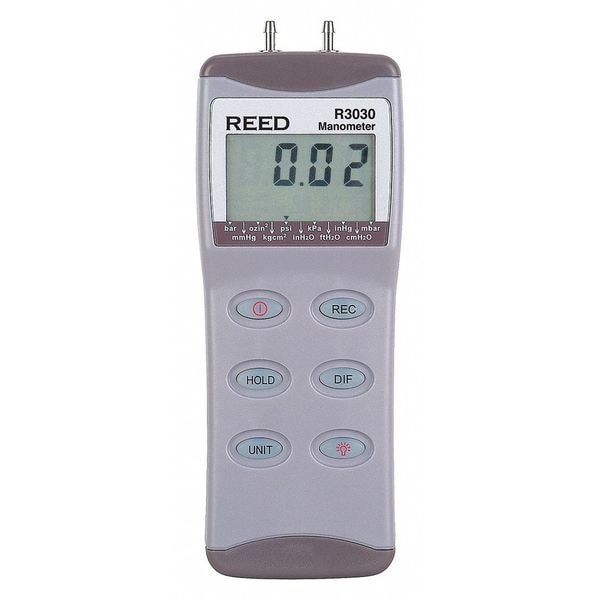

Reed Instruments Digital Manometer, Gauge / Differential, 30psi R3030 - main

Digital Manometer, Gauge / Differential, 30psi

  • Mfr # R3030

  • Zoro # G0644100

product price: $259.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Connection Hoses, Hard Carrying Case
Standards
CE
Accuracy
+/-0.30% of Full Scale
Pressure Accuracy
+/-0.30% of Full Scale
Battery Type
9V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R3030
Zoro #
G0644100
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
For Tubing Diameter
4 mm, 6 mm
Housing Length
2.8 in
Housing Height
7.2 in
Battery Size
9V

Details

Item
Digital Manometer
Includes
(2) Connection Hoses, Hard Carrying Case
Standards
CE
Accuracy
+/-0.30% of Full Scale
Pressure Accuracy
+/-0.30% of Full Scale
Battery Type
9V
Pressure Resolution
0.02 psi
For Use With
Soft Carrying Case
Pressure Range
-30 psi to 30 psi
Calibration Certificate Included
No
Number of Pressures Measured
Dual
Maximum Pressure
30 psi
NIST Traceable Certificate
No
Weight
0.4 lb
Data Hold
Yes
Batteries Included
Yes
Low Battery Indicator
Yes
Operating Pressure Range
Up to 30 psi
Batteries Required
Yes
Storage Temperature Range
14 Degrees to 140 Degrees F
Process Connection Type
Hose Barb
Display Units
bar, cm H2O, ft H2O, in H2O, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
Digital Display Features
4 Digit Backlit LCD
Number of Connections
2
Min/Max Capture
Yes
Type of Pressure
Differential, Gauge
Maximum Operating Pressure
30 psi
Maximum Operating Temperature
122 Degrees F
Minimum Pressure
-30 psi
Auto Power Off
Yes
Manometer Type
General Purpose Digital Manometer
Minimum Operating Temperature
32 Degrees F
Series
REED R3030
Pressure Type Measured
Differential, Gauge
Includes Data Hold
Data Hold
Includes Low Battery Indicator
Low Battery Indicator
Pressure Measurement - Maximum
60 psi
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Number of Digits
4
Operating Temperature - Minimum
32 Degrees F
Number of Process Connections
2
Digital Display Type
Backlit LCD
Pressure Measurement - Minimum
-30 psi
Includes Min/Max Capture
Min/Max Capture
Includes Batteries
Batteries Included
Pressure Stages Measured
Dual
Operating Temperature - Maximum
122 Degrees F

Description

Digital Manometer, Maximum Pressure 30 psi, Minimum Pressure -30 psi, Accuracy +/-0.30 Percent of Full Scale, Process Connection Type Hose Barb, Batteries Included Yes, Digital Display Features 4 Digit Backlit LCD, NIST Traceable Certificate No, Series REED R3030, Auto Power Off Yes, Batteries Required Yes, Battery Type 9V, Calibration Certificate Included No, Data Hold Yes, Display Units bar, cm H2O, ft H2O, in H2O, in Hg, kg/sq cm, kPa, mbar, mm Hg, oz/sq in, psi
