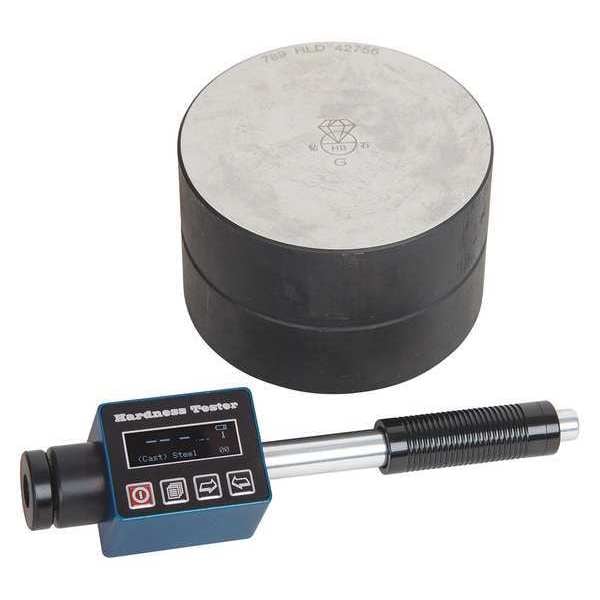

Hardness Tester, Pen-Style, Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS)
Mfr # R9030
Zoro # G7649866
product price:Â $1,525.50
/ea
Free Shipping & Returns
Key Features
Type
Universal D Impact
Scales
Brinell HB 19 to 651, Leeb HLD 170 to 960, Rockwell HRA 59 to 85, Rockwell HRB 13 to 100, Rockwell HRC 20 to 68, Shore HS 30 to 100, Vickers HV 80 to 967
Measuring Range
19 to 651HB, 170 to 960HLD, 59 to 85HRA, 13 to 100HRB, 20 to 68HRC, 30 to 100HS, 80 to 967HV
Indenter
Tugsten
Includes
Brush, Charger, Impact Device, Leeb Test Block, Software, Supporting Ring, USB Cable and Carrying Case
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
R9030
Zoro #
G7649866
UPC #
-
Country of Origin
China
Dimensions
Work Surface Width
51/64 in
Test Depth - Minimum
0 in
Work Surface Depth
1/32 in
Details
Item
Hardness Tester
Type
Universal D Impact
Scales
Brinell HB 19 to 651, Leeb HLD 170 to 960, Rockwell HRA 59 to 85, Rockwell HRB 13 to 100, Rockwell HRC 20 to 68, Shore HS 30 to 100, Vickers HV 80 to 967
Measuring Range
19 to 651HB, 170 to 960HLD, 59 to 85HRA, 13 to 100HRB, 20 to 68HRC, 30 to 100HS, 80 to 967HV
Indenter
Tugsten
Includes
Brush, Charger, Impact Device, Leeb Test Block, Software, Supporting Ring, USB Cable and Carrying Case
Resolution
128 x 32
Output
Digital Display
Features
Mini USB Data Interface, Real-Time Clock, Rechargeable Lithium Battery
Green Environmental Attribute
Product is Rechargeable
Product Type
Hardness Tester
Measuring Range - Minimum
13 HRB, 19 HB, 20 HRC, 59 HRA, 80 HV
Measuring Range - Maximum
68 HRC, 85 HRA, 100 HRB, 651 HB, 967 HV
Indenter Type
Tugsten
Accuracy
+/-6 HLD
Accepted Test Materials
Alloy Steel, Aluminum, Bronze, Cast Iron, Cast Steel, Copper, Stainless Steel
Testing Methods
Impact
Hardness Scale
Brinell, Leeb, Rockwell, Shore, Vickers
Display Type
Digital
Interface Type
USB
Description
The Reed Instruments R9030 Hardness Tester is a versatile and easy-to-use device that can be used for both qualitative and quantitative measurements. The hardness tester comes with five scales, which measure Brinell HB 19 to 651, Leeb HLD 170 to 960, Rockwell HRA 59 to 85, Rockwell HRB 13 to 100 and Rockwell HRC 20 to 68. It also has a Shore HS 30 to 100 scale as well as Vickers HV 80 to 967 scale. This product's output is digital and it has a resolution of 128 x 32. With its rechargeable battery and USB data interface, the hardiness tester will give you accurate results in real time. If you need an all-inclusive hardness tester that does not take up much space on your workbench or in your toolbox, then this Reed Instruments R9030 Hardness Tester is just what you need.
