Shop REED INSTRUMENTS

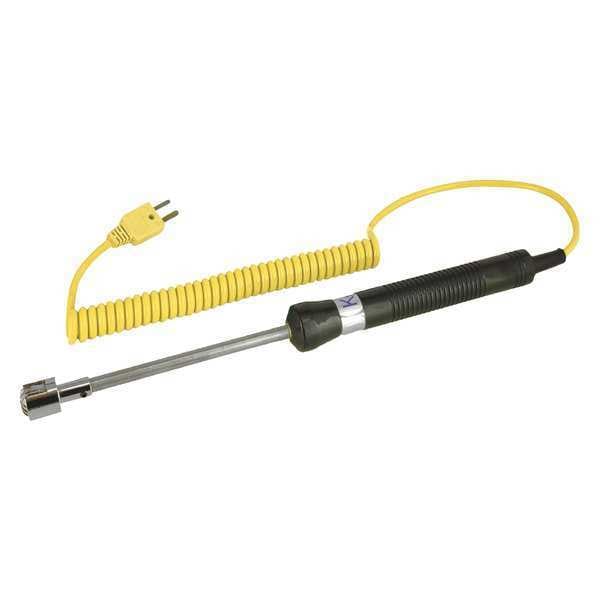

Surface Thermocouple Probe, Type K, -58 to 932 Degrees F (-50 to 500 Degrees C)

  • Mfr # R2920

  • Zoro # G0645729

product price:  $74.99
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 932 Degrees
Temp. Range (C)
-50 Degrees to 500 Degrees
Probe Length
6.3 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R2920
Zoro #
G0645729
UPC #
-
Country of Origin
China

Dimensions

Probe Length
6.3 in
Probe Wire Length
3 ft 3 in
Probe Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
1 yr
Cable Length
39 in
Probe Tip Diameter
15 mm
Probe Diameter
0.5 in
Probe Size
1/2 in x 6.3 in

Details

Item
Thermocouple Bead Probe
Sensor Type
Thermocouple
Temp. Range (F)
-58 Degrees to 932 Degrees
Temp. Range (C)
-50 Degrees to 500 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connection Type
Type K Mini
Probe Contact Material
Stainless Steel
Accuracy
+/-0.75 % of Reading @ 560 to 932 Degrees F, +/-3.96 Degrees F @ -58 to 560 Degrees F
Use
General Purpose
Response Time
2 sec
Calibration Certificate
No
For Use With
Type K Temperature Measuring Thermometers
For Liquids and Gels
Yes
Cable Material
Polyurethane Jacket
For Surfaces
Yes
For Gases
No
Handle Material
Plastic
Minimum Temperature C
-50 Degrees C
Maximum Temperature F
932 Degrees F
Minimum Temperature F
-58 Degrees F
Probe Sheath Material
Stainless Steel
Connector Type
Mini Plug
For Air
No
Tip Style
Flat
For Solids
Yes
Head Material
Stainless Steel
Maximum Temperature C
500 Degrees C
For Application
Surface
Thermocouple Type
Type K
Temperature Range
-58 Degrees to 932 Degrees F/-50 Degrees to 500 Degrees C
Handle Type
Straight
Probe Bend
Straight
Maximum Temperature °C
500 Degrees C
Minimum Temperature °F
-58 Degrees F
Maximum Temperature °F
932 Degrees F
Minimum Temperature °C
-50 Degrees C
Minimum Temperature °C
-50 Degrees C
Maximum Temperature °C
500 Degrees C
Maximum Temperature °F
932 Degrees F
Minimum Temperature °F
-58 Degrees F
For Media Type
Surfaces
Maximum Temperature (°F)
932 Degrees F
Maximum Temperature (°C)
500 Degrees C

Description

Thermocouple Bead Probe, Type K, For Application Surface, Mini Plug, Probe Size 1/2 in x 6.3 in, Cable Length 39 in, -58 Degrees to 932 Degrees F/-50 Degrees to 500 Degrees C, Thermocouple
