Shop REED INSTRUMENTS

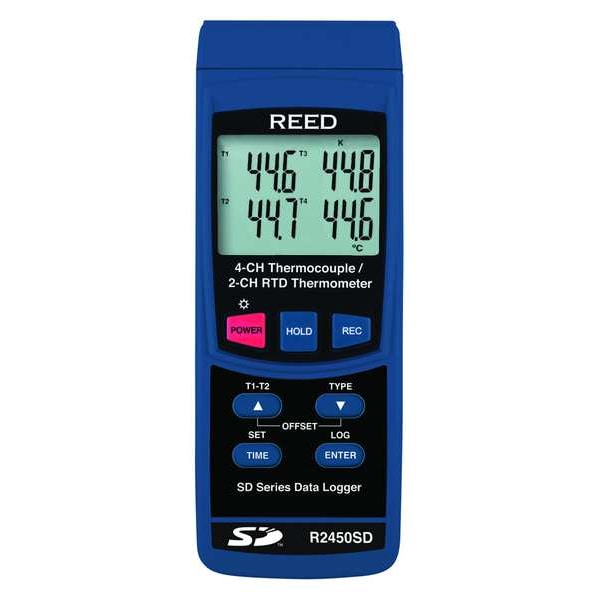

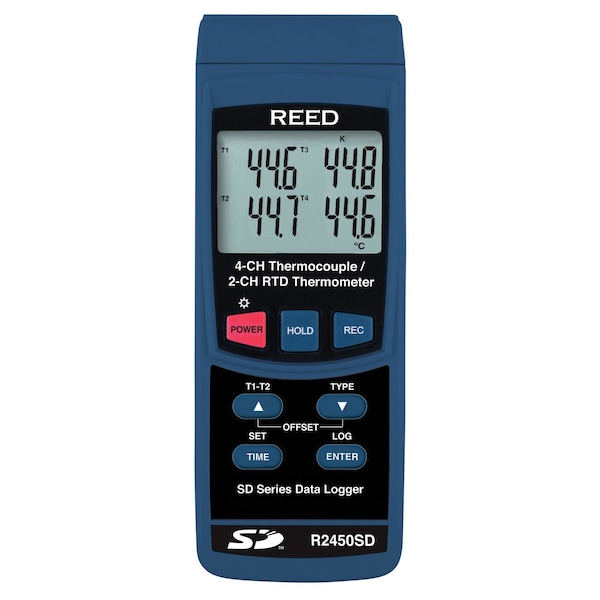

Thermometer, LCD, 53mm, Thermocouple, RTD

  • Mfr # R2450SD

  • Zoro # G4375256

product price:  $296.10
/ea
Free Shipping & Returns

Key Features

Number of Inputs
4
Probe Connector
Mini-Type
Temp. Range (F)
-327.9 Degrees to 1562 Degrees
Temp. Range (C)
-199.99 Degrees to 850 Degrees
Accuracy
+/-0.4 % + 1.8 Degrees F/1 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R2450SD
Zoro #
G4375256
UPC #
800837004529
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Display Size
38 mm H x 53 mm W
Digit Height
20 mm
Manufacturer Warranty Length
1 yr
Display Width
53 mm
Display Height
38 mm
Battery Size
AA

Details

Number of Inputs
4
Probe Connector
Mini-Type
Temp. Range (F)
-327.9 Degrees to 1562 Degrees
Temp. Range (C)
-199.99 Degrees to 850 Degrees
Accuracy
+/-0.4 % + 1.8 Degrees F/1 Degrees C
Display
LCD
Battery Type
(6) AA
Item
Thermocouple Thermometer
Memory
Min/Max
Data Logging
Yes
Sampling Rate
1 to 3600 sec
Auto Power Off
Yes
Calibration Certificate Included
No
Includes
Batteries
Data Hold
Yes
Resolution
0.1 Degrees F/0.1 Degrees C, 1 Degrees F/1 Degrees C
Standards
ISO 9001:2008
Sensor Type
RTD, Thermocouple
Power Source Details
(6) AA Batteries
Backlit
Yes
Included Probes
Mini-Type
For Thermocouple Type
Type E, Type J, Type K, Type R, Type S, Type T
Display Type
LCD
RTD Temperature Range F
-327.9 Degrees to 1,562 Degrees F
Number of Channels
2, 4
RTD Temperature Range C
-199.9 Degrees to 850 Degrees C
Thermocouple Temperature Range C
-100 Degrees to 1,150 Degrees C (Type J), -100 Degrees to 1,300 Degrees C (Type K), -100 Degrees to 400 Degrees C (Type T), -100 Degrees to 900 Degrees C (Type E), 0 Degrees to 1,500 Degrees (Type S), 0 Degrees to 1,700 Degrees C (Type R)
Humidity Range
10% to 85%
Temperature Meter Type
Multichannel Thermocouple Temperature Meter with Data Output and Min/Max
Functions
Degrees F/ Degrees C Switchable, 2-Channel RTD Temperature Measurement, 4-Channel Thermocouple Temperature Measurement, Data Hold, Date/Time Stamp, Low Battery Indication, Maximum and Minimum Indicators, Thermocouple Input Type
For RTD Type
Pt 100
Digital Display
38 mm H x 53 mm W Display with 3.5-Digit Backlit LCD - 20 mm Digit Height
RTD Resistance
100 ohm
Data Output Type
RS-232
Temperature Range
-148 Degrees to 3,092 Degrees F/-100 Degrees to 1,700 Degrees C (Thermocouple), -327.9 Degrees to 1,562 Degrees F/-199.99 Degrees to 850 Degrees C (RTD)
Includes Batteries
Yes
Thermocouple Temperature Range F
-148 Degrees to 1,652 Degrees (Type E), -148 Degrees to 2,102 Degrees F (Type J), -148 Degrees to 2,372 Degrees F (Type K), -148 Degrees to 752 Degrees F (Type T), 32 Degrees to 2,732 Degrees F (Type S), 32 Degrees to 3,092 Degrees F (Type R)
Response Time
1 sec
Includes NIST-Traceable Certificate
No
Includes Wireless Transmission
No
Number of Digits
3.5
Thermocouple Temperature Fahrenheit - Minimum
-148 Degrees F (Type E), -148 Degrees F (Type J), -148 Degrees F (Type K), -148 Degrees F (Type T), 32 Degrees F (Type R), 32 Degrees F (Type S)
RTD Temperature Fahrenheit - Minimum
-327.9 Degrees F
Relative Humidity - Maximum
85 %
Meter Type
Handheld
Testing Functions
Min/Max Temperature
Sensor Technology
RTD, Thermocouple
Number of Batteries Required
6
Relative Humidity - Minimum
10 %
Calibration Certificate Type
Not Certified
Includes Low Battery Indicator
Low Battery Indicator
Temperature Resolution F
0.1 Degrees F below 1,000 Degrees F, 1 Degrees F at or above 1,000 Degrees F
Thermocouple Temperature Fahrenheit - Maximum
1,652 Degrees F (Type E), 2,102 Degrees F (Type J), 2,372 Degrees F (Type K), 2,732 Degrees F (Type S), 3,092 Degrees F (Type R), 752 Degrees F (Type T)
Temperature Units
Celsius, Fahrenheit
RTD Temperature Fahrenheit - Maximum
1,562 Degrees F

Description

Thermocouple Thermometer, RTD, Thermocouple, Number of Channels 2, 4, Includes NIST-Traceable Certificate No, Accuracy +/-0.4 Percent + 1.8 Degrees F/1 Degrees C, -148 Degrees to 3,092 Degrees F/-100 Degrees to 1,700 Degrees C (Thermocouple), -327.9 Degrees to 1,562 Degrees F/-199.99 Degrees to 850 Degrees C (RTD), (6) AA, 38 mm H x 53 mm W Display with 3.5-Digit Backlit LCD - 20 mm Digit Height

Restrictions

Hazardous material
