Reed Instruments

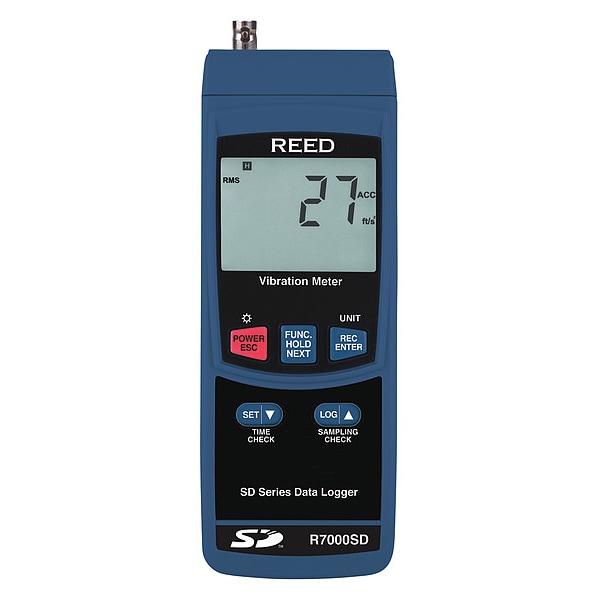

Vibration Meter, +/-5%Acc, LCD

product price: $685.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Acceleration Range 656ft/s2, 200m/s2, 20.39g
  • Frequency Range (Hz) 10 to 1 kHz
  • Temp. Range (F) 14 Degrees to 140 Degrees
  • Velocity 0.5 to 199.9mm/s, 0.05 to 19.99cm/s, 0.02 to 7.87in/s
  • Bearing/Gear Check Yes
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Battery Size AA
Manufacturer Warranty Length 1 yr

Details

Item Vibration Meter
Acceleration Range 656ft/s2, 200m/s2, 20.39g
Frequency Range (Hz) 10 to 1 kHz
Temp. Range (F) 14 Degrees to 140 Degrees
Velocity 0.5 to 199.9mm/s, 0.05 to 19.99cm/s, 0.02 to 7.87in/s
Bearing/Gear Check Yes
Accuracy +/-5%
Includes Carrying Case, Vibration Probe
Display LCD
Data Hold Yes
Battery Type (6) AA
Special Features RMS, Peak Hold and Max/Min Record, Metric or Imperial Measurement Units
Auto Power Off Yes
Calibration Certificate No
Maximum Operating Temperature 122 Degrees F
Number of Digits 4
Velocity Max Resolution 0.01 in/sec
Alert Type Vibration
Testing Functions Acceleration, Velocity
Calibration Certificate Type Available Separately
Batteries Included Yes
Acceleration Measurement - Maximum 656 ft/sq sec
Number of Batteries Required 6
Number of Records Stored 99
Frequency Ranges 10 Hz to 1 kHz
Digital Display Screen Type LCD
Maximum Velocity Measured 199.9 mm/sec
Minimum Velocity Measured 0.5 mm/sec
Features Integrated SD Memory Card, Real Time Data Logger, Selectable Sampling Rate from 1 to 3600 Seconds, Selectable Unit of Measure, Tripod Mount
Minimum Operating Temperature 32 Degrees F
Acceleration Measurement - Minimum 0.05 g
Acceleration Max Resolution 1 ft/sq sec

Description

Vibration Meter, Accuracy +/-5 Percent, Acceleration Measurement - Minimum 0.05 g, Acceleration Measurement - Maximum 656 ft/sq sec, Number of Records Stored 99, Maximum Velocity Measured 199.9 mm/sec, Minimum Velocity Measured 0.5 mm/sec, Acceleration Max Resolution 1 ft/sq sec, Displacement Max Resolution Not Applicable, Maximum Displacement Measured Not Applicable, Minimum Displacement Measured Not Applicable, Velocity Max Resolution 0.01 in/sec, Auto Power Off Yes, Batteries Included Yes
