Reelcraft

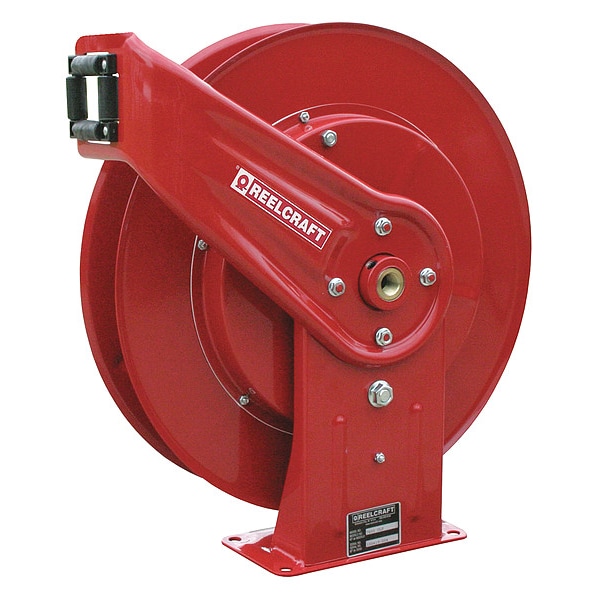

Hose Reel 1/2X50Ft Oil W/Out Hose

product price: $430.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Reel Width 7 in
  • Features Heavy Duty
  • Overall Length 19 3/4 in
  • Drive Type Spring Return
  • Overall Width 7 in
See all product information

Product Information

Dimensions

Reel Width 7 in
Overall Length 19 3/4 in
Overall Width 7 in
Overall Height 20 1/4 in
Swivel Outlet Thread Size 1/2 in - 14
Mount Base Width 5 in
Mount Base Height 9 in
Reel Diameter 9 in
Mounting Hole Center to Center Height 3 7/8 in
Swivel Inlet Thread Size 1/2 in - 14
Swivel Inlet Size 1/2 in
Mount Hole Diameter 1/2 in
Mounting Hole Center to Center Width 7 7/8 in
Overall Dimensions 19 3/4 in L x 7 in W x 20 1/4 in H
Swivel Outlet Size 1/2 in

Details

Item Spring Return Hose Reel
Features Heavy Duty
Drive Type Spring Return
Swivel Material Nickel Plated Steel
Base Motion Type Stationary
Twin Hose Compatible No
Bearing Construction Permanently Lubricated
Swivel Outlet Gender Female
Reel Finish Powder Coated
Includes Leader Hose No
Swivel Inlet Gender Female
Weight 46 lb
Swivel Inlet Type NPT
Hose Capacity 50 ft (3/8 in I.D.)
Maximum Operating Temperature 210 Degrees F
Enclosed No
Reel Material Steel
Corrosion-Resistant Yes
Pedestal Type Single Pedestal
Latch Type Spring Loaded
Minimum Operating Temperature 32 Degrees F
For Dual Hose No
Includes Hose No
Number of Guide Arms Single Arm
Hose Reel Primary Application Oil
Swivel Outlet Type NPT
Maximum Operating Pressure 3,000 psi
Number of Mount Holes 4
Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
Reel Color Red
Speed Limited Retraction No
Fasteners Included No

Description

Spring Return Hose Reel, Oil, Maximum Operating Pressure 3,000 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Corrosion-Resistant Yes, Enclosed No, For Dual Hose No, Hose Reel Type Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel, Includes Hose No, Mounting Location Ceiling, Floor, Wall, Pedestal Type Single Pedestal, Number of Guide Arms Single Arm, Overall Height 20 1/4 in, Overall Length 19 3/4 in, Overall Width 7 in, Reel Material Steel, Reel Finish Powder Coated
