  11. Hose Reel, 1/4in. dia., 60 ft., Grade T

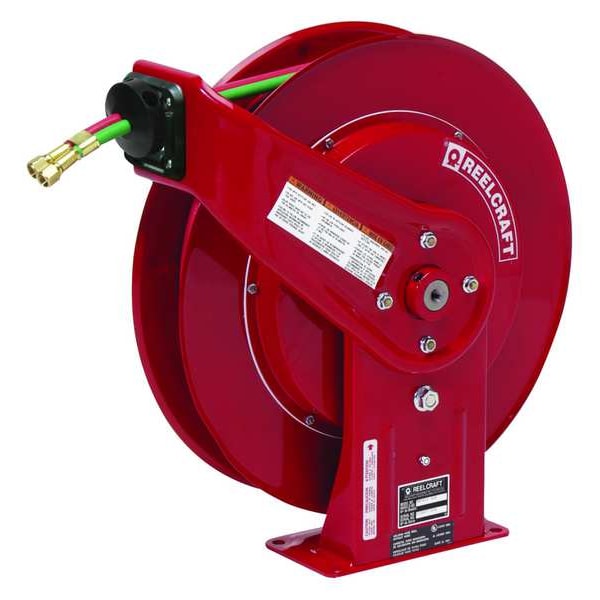

Reelcraft Hose Reel, 1/4in. dia., 60 ft., Grade T TW7460 OLPT - main

Hose Reel, 1/4in. dia., 60 ft., Grade T

  • Mfr # TW7460 OLPT

  • Zoro # G9972934

product price: $660.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
200 psi
Hose Inside Dia.
1/4 in
Hose Length
60 ft
Drive Type
Spring Return
Thread
9/16"-18 UNF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TW7460 OLPT
Zoro #
G9972934
UPC #
699567002420
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Hose Length
60 ft
Overall Width
7 3/8 in
Overall Height
20 1/4 in
Overall Length
19 3/4 in
Hose 2 Inside Diameter
1/4 in
Fitting Size
9/16 in x 9/16 in
Overall Dimensions
19 3/4 in L x 7 3/8 in W x 20 1/4 in H
Hose 2 Length
60 ft
Reel Diameter
9 in
Hose 2 Fitting A Size
9/16 in
Reel Width
7 3/8 in
Hose 1 Fitting B Size
9/16 in
Mount Base Height
9 in
Hose 2 Outside Diameter
1/2 in
Swivel Outlet Thread Size
9/16 in - 18
Hose 1 Inside Diameter
1/4 in
Mounting Hole Center to Center Width
7 7/8 in
Mounting Hole Center to Center Height
3 7/8 in
Mount Hole Diameter
1/2 in
Hose 1 Length
60 ft
Hose 2 Fitting B Size
9/16 in
Hose 1 Fitting A Size
9/16 in
Hose 1 Outside Diameter
1/2 in
Mount Base Width
5 in
Swivel Inlet Size
1/4 in
Swivel Inlet Thread Size
1/4 in - 18
Swivel Outlet Size
9/16 in

Details

Max. Pressure
200 psi
Drive Type
Spring Return
Thread
9/16"-18 UNF
Hose Included
Yes
Hose Outlet
9/16 in UNF
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
Seal Type
Nitrile
Item
Welding Hose Reel
Bearings
Permanently Lubricated
(F)NPT Reel Inlet (In.)
1/4 in
Mounting
Bench or Truck, Ceiling, Floor, Wall
Max. Temp.
150 Degrees F
Hose Grade
T
Welding Hose Grade
T
Latch
Locking
For Use With
Acetylene, Mapp, Natural And Other Fuel Gases, Propane
Swivel Material
Aluminum
Reel Finish
Powder Coated
Hose 2 Tube Material
Rubber
Standards
UL Listed
Reel Color
Red
Hose 2 Fitting A Material
Brass
Hose Return Speed Control
No
Hose Capacity
60 ft (1/4 in ID)
Fasteners Included
No
Hose 2 Color
Green
Hose 2 Cover Material
Rubber
Bearing Construction
Permanently Lubricated
Spiral Hose Guard
No
Maximum Operating Pressure
200 psi
Hose 1 Color
Red
Hose Reel Primary Application
Welding
Hose 2 Fitting B Type
UNF
Hose 2 Fitting B Gender
Female
Hose Reel Type
Vehicle, Wall Mount Hose Reel
Swivel Outlet Type
UNF
Hose 2 Fitting B Material
Brass
Hose 1 Fitting A Material
Brass
Features
Welded Steel Base
Hose 1 Fitting B Type
UNF
For Dual Hose
Yes
Includes Hose
Yes
Hose 1 Fitting B Material
Brass
Hose 1 Fitting A Gender
Female
Includes Leader Hose
No
Minimum Operating Temperature
-40 Degrees F
Latch Type
Locking
Hose 1 Cover Material
Rubber
Base Motion Type
Stationary
Hose 1 Tube Material
Rubber
Maximum Operating Temperature
150 Degrees F
Hose 1 Fitting A Type
UNF
Minimum Operating Pressure
0 psi
Swivel Inlet Gender
Female
Include Hose Stop
Yes
Fitting Type
UNF x UNF
Hose 1 Fitting B Gender
Female
Weight
55 lb
Reel Material
Steel
Hose End Configuration
9/16 in F UNF
Swivel Inlet Type
NPT
Enclosed
No
Combination Type
Fuel Gas, Mapp, Natural, Oxygen/Acetylene, Propane
Hose 2 Fitting A Gender
Female
Hose 2 Fitting A Type
UNF
Swivel Outlet Gender
Male
Speed Limited Retraction
No

Description

Welding Hose Reel, Welding, Hose Grade T, 200 psi, 0 psi, Hose Capacity 60 ft (1/4 in ID), Combination Type Fuel Gas, Mapp, Natural, Oxygen/Acetylene, Propane, Drive Type Spring Return, For Dual Hose Yes, Hose Reel Type Vehicle, Wall Mount Hose Reel, Hose Return Speed Control No, Includes Hose Yes, Hose 1 Color Red, Hose 1 Cover Material Rubber, Hose 1 Fitting A Gender Female, Hose 1 Fitting A Material Brass, Hose 1 Fitting A Size 9/16 in, Hose 1 Fitting A Type UNF
