  6. Hose Reel Assembly, 3/4 in Hose Diameter, 100 ft Length, 500 psi Max. Pressure, Steel, Red

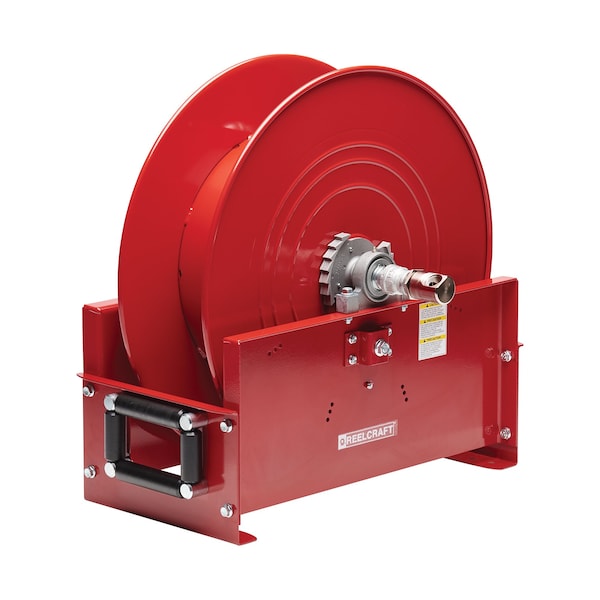

Reelcraft Hose Reel Assembly, 3/4 in Hose Diameter, 100 ft Length, 500 psi Max. Pressure, Steel, Red E9305 OLPBW - main

Hose Reel Assembly, 3/4 in Hose Diameter, 100 ft Length, 500 psi Max. Pressure, Steel, Red

  • Mfr # E9305 OLPBW

  • Zoro # G7803518

product price:  $1,168.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
500 psi
Drive Type
Spring Return
Enclosed
No
Includes
Instructions
Hose Inside Dia.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E9305 OLPBW
Zoro #
G7803518
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
3/4 in
Overall Height
26 3/8 in
Hose Length
100 ft
Overall Width
18 1/4 in
Overall Length
26 1/4 in
Reel Diameter
15 1/2 in
Hose Outside Dia.
1 1/16 in
Mount Base Width
23 3/8 in
Mounting Hole Center to Center Height
7 3/4 in
Swivel Outlet Size
3/4 in
Mounting Hole Center to Center Width
22 1/4 in
Swivel Inlet Size
3/4 in
Overall Dimensions
26 3/8 in H x 18 1/4 in W x 26 1/4 in L
Mount Hole Diameter
7/16 in

Details

Item
Hose Reel Assembly
Max. Pressure
500 psi
Drive Type
Spring Return
Enclosed
No
Includes
Instructions
Hose Color
Red
Reel Color
Red
Features
Reels are Shipped in the Bottom Wind Position with a Right-Hand Inlet
Swivel Material
Steel
Weight
115 lb
Swivel Outlet Gender
Female
Swivel Outlet Type
NPT
Includes Hose Stop
Yes
Base Motion Type
Swivel
Corrosion-Resistant
Yes
Hose Reel Type
Vehicle Mount Hose Reel
Latch Type
Spring Loaded
Speed Limited Retraction
No
Number of Guide Arms
Single Arm
Swivel Inlet Gender
Female
Hose Capacity
100 ft (3/4 in I.D.)
Hose Reel Secondary Application
Air, Water
Maximum Operating Pressure
500 psi
Maximum Operating Temperature
210 Degrees F
Reel Material
Steel
Includes Hose
No
Swivel Inlet Type
NPT
Bearing Construction
Permanently Lubricated
Number of Mount Holes
4
Pedestal Type
Dual Pedestal

Description

Hose Reel Assembly, Air, Water, 500 psi, Hose Capacity 100 ft (3/4 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose No, Hose Inside Dia. 3/4 in, Hose Length 100 ft, Reel Material Steel, Mounting Location Permanent Service/Plant Work Areas, Truck, Speed Limited Retraction No, Overall Height 26 3/8 in, Overall Length 26 1/4 in, Overall Width 18 1/4 in, Corrosion-Resistant Yes, Hose Color Red, Hose Fitting A Gender Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
