This item is Discontinued.

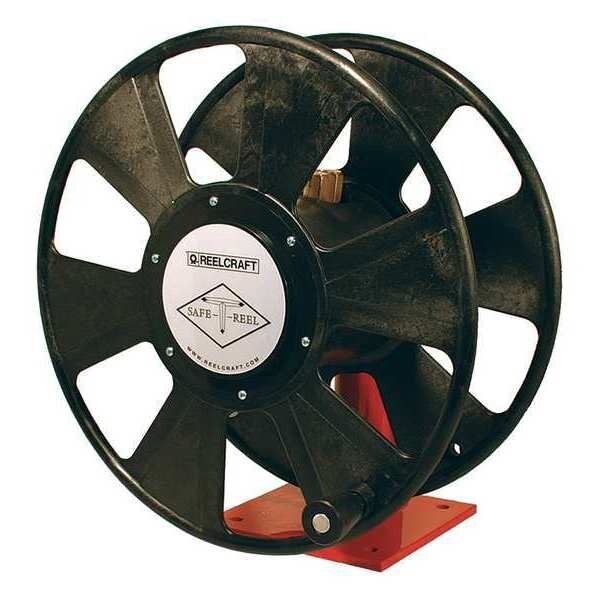

Reelcraft Hose Reel, Welding Gas T-1225-04

Hose Reel, Welding Gas (Discontinued)

  • Mfr # T-1225-04
  • Zoro # G2872493
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T-1225-04
Zoro #
G2872493
UPC #
699567010920
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Hose Length
150 ft
Overall Height
19 in
Overall Length
18 in
Overall Width
16 1/4 in
Reel Diameter
6 1/4 in
Swivel Inlet Thread Size
9/16 in - 18
Mount Base Height
8 in
Swivel Inlet Size
9/16 in
Handle Length
1 3/4 in
Mount Hole Diameter
1/2 in
Mounting Hole Center to Center Height
6 in
Mount Base Width
8 in
Overall Dimensions
18 in L x 16 1/4 in W x 19 in H
Swivel Outlet Size
9/16 in
Reel Width
6 1/2 in
Mounting Hole Center to Center Width
6 in
Swivel Outlet Thread Size
9/16 in - 18

Details

(F)NPT Reel Inlet (In.)
9/16 in
Hose Grade
T
Max. Pressure
200 psi
Thread
9/16"-18 NPTF
Max. Temp.
150 Degrees F
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
For Use With
Gases Other Than Acetylene, Such As Mapp, Propane, Natural And Other Fuel Gases
Hose Included
No
Item
Hand Crank Hose Reel
Hose Outlet
9/16 in UNF
Seal Type
Nitrile
Mounting
Bench or Truck, Floor, Wall
Bearings
Permanently Lubricated
Latch
Constant Tension
Welding Hose Grade
T
Drive Type
Hand Crank
Swivel Material
Aluminum
Includes
Instructions
Features
Ideal For Applications Where Space, Weight and Flexibility Are Key
Weight
19 lb
Fasteners Included
No
Base Motion Type
Stationary
Enclosed
No
Hose Reel Primary Application
Welding
Includes Hose
No
For Dual Hose
Yes
Hose Capacity
150 ft (1/4 in I.D.)
Reel Finish
Powder Coated
Number of Mount Holes
4
Reel Material
Aluminum
Swivel Inlet Gender
Male
Maximum Operating Temperature
150 Degrees F
Reel Color
Black
Includes Leader Hose
No
Swivel Inlet Type
UNF
Hose Reel Type
Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Swivel Outlet Type
UNF
Minimum Operating Temperature
-40 Degrees F
Bearing Construction
Permanently Lubricated
Seal Material
Nitrile
Includes Gooseneck
No
Maximum Operating Pressure
200 psi

Description

Hand Crank Hose Reel, Welding, Hose Capacity 150 ft (1/4 in I.D.), 200 psi, Overall Height 19 in, Overall Length 18 in, Overall Width 16 1/4 in, Reel Material Aluminum, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Reel Color Black, Includes Gooseneck No, Hose Reel Type Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel, Swivel Material Aluminum, Swivel Outlet Size 9/16 in
