Shop REELCRAFT

Power Cord Reel with 45 ft. Cord 3-Outlet 12/3

  • Mfr # L 4545 123 9

  • Zoro # G0634490

product price:
$
599.99
/ea
Free Shipping & Returns

Key Features

Voltage
125V
Cord Included
Yes
Max. Amps
15
Cord Length
45 ft.
Grade
Heavy Duty
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L 4545 123 9
Zoro #
G0634490
UPC #
-
Country of Origin
United States

Dimensions

Cord Length
45 ft.
Overall Height
12 7/8 in
Feeder Cord Length
45 ft
Overall Width
12 5/8 in
Overall Depth
9 3/8 in
Retractable Cord Length
45 ft
Wire Size
12 AWG

Details

Voltage
125V
Item
Extension Cord Reel
Cord Included
Yes
Max. Amps
15
Grade
Heavy Duty
Number of Outlets
3
Enclosed Reel
No
NEC Cord Designation
SJEOOW
Gauge/Conductor
12/3
Standards
CSA, UL
Reel Material
Steel
Cord Color
Black
Reel Mounting
Ceiling, Floor, Wall
Reel Color
Red
Feeder Cord Ending
Triple Outlet
Includes
15 A Molded Triple Tap, NEMA 5-15P Inlet Straight Blade Plug
Retractable Cord Ending
Triple Tap Connector
Number of Conductors
3
Enclosure Rating
Not Rated
Retractable Cord Ending Configuration
NEMA 5-15P
Feeder Cord Ending Configuration
NEMA 5-15P
Winding Method
Spring Driven
Tension Method
Constant Tension
Trade Designation
SJEOOW
Reel Capacity
45 ft of 12/3
Special Features
A Heavy Duty Collector Ring, Individually Powder-Coated Steel Components, Robotically Welded Steel Base
Location
Indoor
Plug Style
Straight
Maximum Current
15 A
UL Enclosure Rating
Type 1
Temperature Rating
0 Degrees to 125 Degrees F
Retractable Cord Ending NEMA Configuration
5-15R
NEMA Enclosure Rating
Not Rated

Description

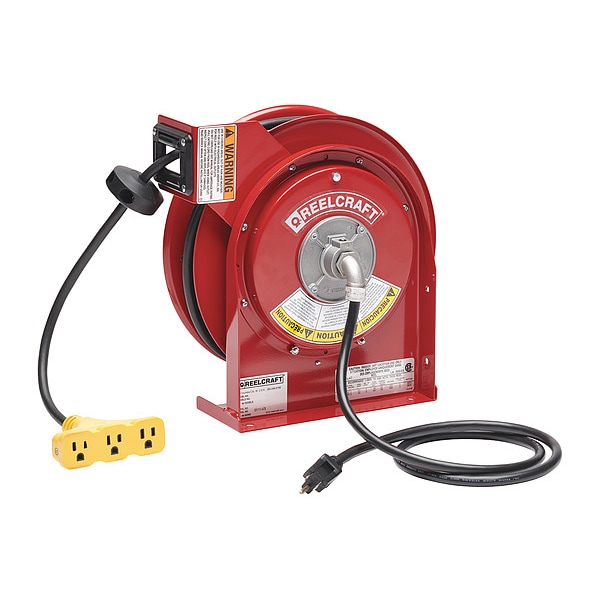

The REELCRAFT L 4545 123 9 is a spring-driven power cord reel with a 45 ft. 12/3 SJEOOW cord and a 15 A molded triple tap. It includes a 4 to 5 ft. pigtail with a NEMA 5-15P straight blade plug and is intended for indoor use in non-weather-tight applications. The open steel reel can be mounted on a ceiling, floor, or wall and uses a constant tension design for cord management.

Key features:

  • 45 ft. cord length: Provides 45 ft. of retractable 12/3 power cord.
  • Triple outlet end: Includes a molded triple tap with 3 outlets for connecting multiple devices.
  • 15 A, 125V rating: Rated for 15 amps at 125 volts.
  • SJEOOW cord: Uses black 12 AWG, 3-conductor cord.
  • Spring-driven reel: Retracts the cord with a spring-driven winding method.
  • Steel construction: Base plate, upright, guide arm, spool, and base are made of steel.
  • Locking spool: Speed latch locks the spool in two positions per rotation.
  • Collector ring: Heavy duty collector ring supports electrical conductivity.
  • Powder-coated components: Individually powder-coated steel parts help resist premature corrosion.
  • Mounting options: Can be mounted to a ceiling, floor, or wall.
  • Standards: UL and CSA listed.
  • Overall size: 12 5/8 in. W x 9 3/8 in. D x 12 7/8 in. H.
