Reelcraft

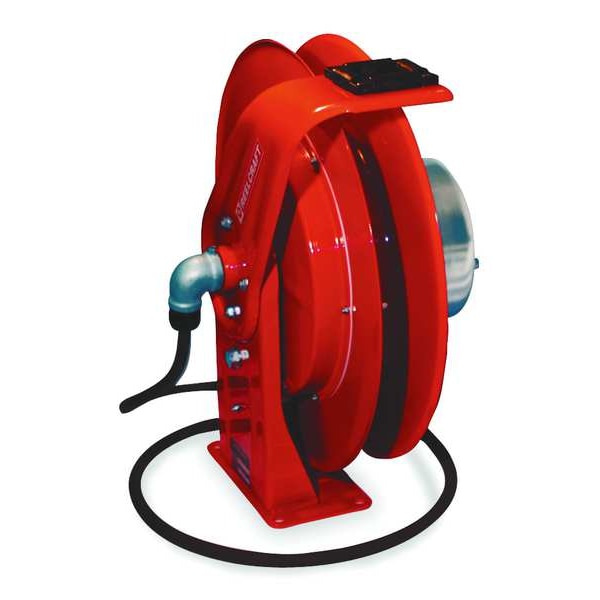

Reel, Welding Cable


product price: $1,309.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Type Spring
  • Max. Amps 400 A
  • #1 Cable Capacity 50 ft
  • Mounting Bench, Ceiling, Floor, Truck, Wall
  • Max. Temp. 250 Degrees F
See all product information

Product Information

Dimensions

Shaft Dia. 1 1/4 in
Overall Length 19 in
Overall Width 14 in
Overall Height 20.25 in
Cable Length Capacity by Gauge 1 AWG: 50 ft, 1/0 AWG: 50 ft, 2/0 AWG: 50 ft
Compatible Cable Length (Maximum) 50 ft
Mounting Hole Diameter 1/2 in
Overall Depth 18 in

Details

Item Arc Welding Cable Reel
Drive Type Spring
Max. Amps 400 A
#1 Cable Capacity 50 ft
Mounting Bench, Ceiling, Floor, Truck, Wall
Max. Temp. 250 Degrees F
Latch Locking
#1/0 Cable Capacity 50 ft
#2/0 Cable Capacity 50 ft
Bearings Permanently Lubricated
Reel Type Electric Welding
Finish Powder Coated
Weight 58 lb
Features Corrosion Resistant, Long Life Drive Spring
Maximum Temperature 250 Degrees F
Compatible Cable Gauge (Maximum) 2/0 AWG
Reel Configuration Single Reel
Base Frame Material Steel
Maximum Voltage 90V
Lock Type Latch
Compatible Cable Gauge (Minimum) 1 AWG
Housing Finish Powder Coated
Maximum Current 400 A

Description

Arc Welding Cable Reel, Compatible Cable Gauge (Minimum) 1 AWG, Compatible Cable Gauge (Maximum) 2/0 AWG, Cable Length Capacity by Gauge 1 AWG: 50 ft, 1/0 AWG: 50 ft, 2/0 AWG: 50 ft, Maximum Current 400 A, Reel Configuration Single Reel, Mounting Hole Diameter 1/2 in, Drive Type Spring, Compatible Cable Length (Maximum) 50 ft, Mounting Location Bench, Ceiling, Floor, Truck, Wall, Base Frame Material Steel, Features Corrosion Resistant, Long Life Drive Spring, Housing Finish Powder Coated
