Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 2,000 psi Max. Pressure, Red

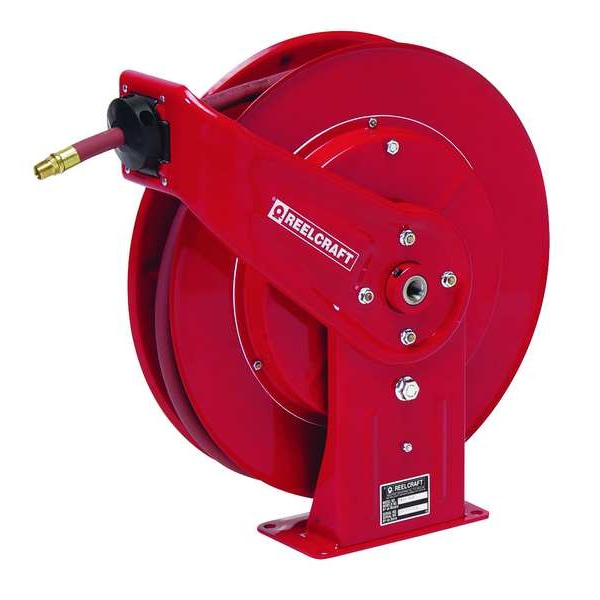

The REELCRAFT 7850 OMP is a spring return hose reel for dispensing motor oil, transmission fluid, gear oil, and hydraulic fluid. It is a stationary, open-style reel that can be mounted to a wall, floor, ceiling, bench, or truck. This model includes a 50 ft x 1/2 in I.D. hose with 1/2 in NPT male ends and is built with a steel base, guide arm, and spool. The inlet hose is routed through the base to reduce stress on the swivel, and the guide arm can be adjusted to seven positions.

Key features of the REELCRAFT 7850 OMP:

• Spring return drive: Automatically retracts the hose after use.
• Included hose: 50 ft long, 1/2 in I.D., black synthetic rubber hose.
• Pressure and temperature: Rated up to 3,000 psi maximum operating pressure and 210 degrees F maximum operating temperature.
• Fittings: 1/2 in NPT x NPT connections with 1/2 in (F)NPT reel inlet and 1/2 in (M)NPT hose outlet.
• Construction: Carbon steel reel with powder-coated finish and corrosion-resistant steel components.
• Guide arm: Single guide arm adjusts to seven positions for different mounting orientations.
• Bearings: Permanently lubricated bearing construction.
• Mounting: Fits wall, floor, ceiling, bench, and truck mounting applications with 4 mounting holes.
• Included components: Supplied with hose and hose stop bumper.
• Overall size: 19 3/4 in L x 7 in W x 20 1/4 in H; weight 57 lb.
