Shop REELCRAFT

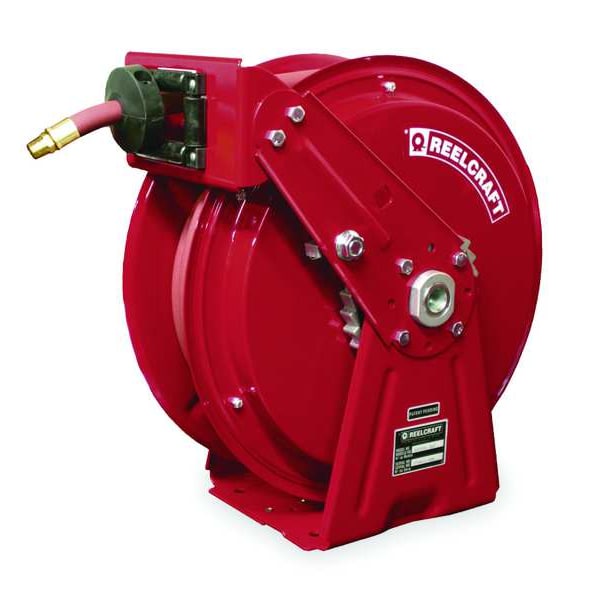

Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 3,250 psi Max. Pressure, Red

  • Mfr # DP7850 OMP

  • Zoro # G0930991

product price:
$
839.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
3,250 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DP7850 OMP
Zoro #
G0930991
UPC #
699567009955
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/2 in
Overall Height
17 in
Hose Length
50 ft
Overall Width
9 in
Overall Length
16 1/2 in
Reel Diameter
7 in
Hose Outside Dia.
13/16 in
Length
16 1/2 in
Reel Width
9 in
Height
17 in
Mount Base Height
9 in
Hose Fitting A Size
1/2 in
Swivel Outlet Thread Size
3/4 in - 14
Swivel Outlet Size
3/4 in
Mounting Hole Center to Center Height
7 in
Mount Hole Diameter
7/16 in
Swivel Inlet Thread Size
1/2 in - 14
Fitting Size
1/2 in x 1/2 in
Hose Fitting B Size
1/2 in
Overall Dimensions
16 1/2 in L x 9 in W x 17 in H
Mounting Hole Center to Center Width
5 in
Mount Base Width
7 63/64 in
Swivel Inlet Size
1/2 in
Wire Rope Length
16 1/2 in

Details

Item
Spring Return Hose Reel
Max. Pressure
3,250 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
1/2 in MNPT
Hose Color
Black
Hose Material
SAE 100 R1 T
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Red
Features
Long Life Drive Spring, Superior Latch Spring Design
Media - Hose Reels
Oil
Application
Oil
Swivel Material
Nickel Plated Steel
Bearings
Permanently Lubricated
Finish - Hose Reels
Powder Coated
Reel Inlet
1/2 in (F)NPT
Hose Outlet
1/2 in (M)NPT
Duty Rating
Heavy Duty
Latch
Locking
Max. Temp.
210 Degrees F
Housing Material
Steel
Seal Type
Aflas
Reel Material
Carbon Steel
Twin Hose Compatible
No
Number of Guide Arms
Double Arm
Hose Fitting A Material
Steel
Maximum Operating Temperature
210 Degrees F
Base Motion Type
Stationary
Swivel Inlet Type
NPT
Weight
64 lb
Pedestal Type
Dual Pedestal
For Dual Hose
No
Reel Finish
Powder Coated
Swivel Inlet Gender
Female
Hose Fitting B Gender
Male
Hose Fitting A Type
NPT
Fitting Type
NPT x NPT
Hose Tube Material
Synthetic Rubber
Hose Capacity
50 ft (1/2 in I.D.)
Minimum Operating Temperature
32 Degrees F
Spiral Hose Guard
No
Corrosion-Resistant
Yes
Hose Reel Primary Application
Oil
Includes Hose
Yes
Hose Fitting A Gender
Male
Hose Cover Material
Synthetic Rubber
Swivel Outlet Gender
Male
Swivel Outlet Type
NPT
Hose Fitting B Material
Steel
Hose Reel Type
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Maximum Operating Pressure
3,000 psi
Number of Mount Holes
4
Latch Type
Spring Loaded
Speed Limited Retraction
No
Fasteners Included
No
Includes Leader Hose
No
Includes Hose Stop
Yes
Hose Fitting B Type
NPT
Bearing Construction
Permanently Lubricated
Type
Compact Dual Pedestal

Description

Spring Return Hose Reel, Oil, 3,000 psi, Hose Capacity 50 ft (1/2 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/2 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 17 in, Overall Length 16 1/2 in, Overall Width 9 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Synthetic Rubber, Hose Fitting A Gender Male
