Spring Return Hose Reel, 3/4 in Hose Diameter, 75 ft Length, 250 psi Max. Pressure, Red
Mfr # D83075 OLP
Zoro # G1234055
product price:Â $1,030.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
250 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose Inside Dia.
3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D83075 OLP
- Zoro #
- G1234055
- UPC #
- 699567017523
- Country of Origin
- United States
Dimensions
- Hose Inside Dia.
- 3/4 in
- Overall Height
- 25 3/8 in
- Hose Length
- 75 ft
- Overall Width
- 13 in
- Overall Length
- 24 in
- Reel Diameter
- 15 1/2 in
- Hose Outside Dia.
- 1 1/16 in
- Length
- 24 in
- Height
- 25 3/8 in
- Reel Width
- 13 in
- Hose Fitting B Size
- 3/4 in
- Mounting Hole Center to Center Height
- 10 1/2 in
- Swivel Inlet Size
- 3/4 in
- Fitting Size
- 3/4 in x 3/4 in
- Hose Fitting A Size
- 3/4 in
- Mount Hole Diameter
- 1/2 in
- Overall Dimensions
- 24 in L x 13 in W x 25 3/8 in H
- Mount Base Width
- 9 11/32 in
- Mount Base Height
- 12 in
- Swivel Outlet Size
- 3/4 in
- Mounting Hole Center to Center Width
- 7 7/8 in
- Swivel Outlet Thread Size
- 3/4 in - 14
- Swivel Inlet Thread Size
- 3/4 in - 14
- Wire Rope Length
- 24 in
Description

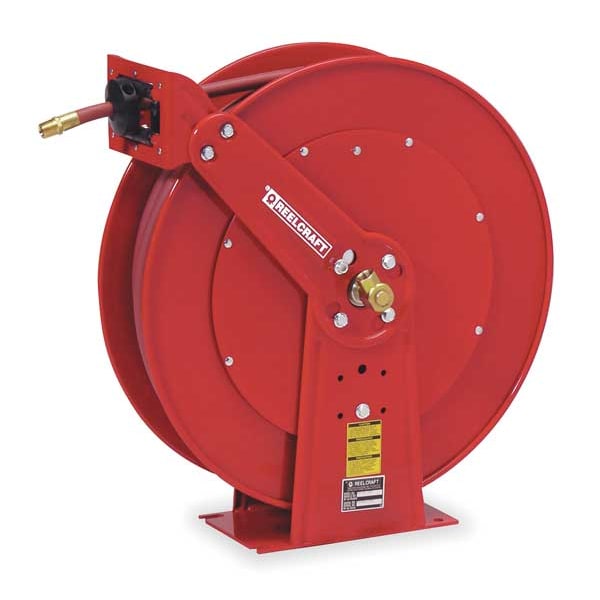

The REELCRAFT D83075 OLP is a spring return hose reel for air and water service that includes a 3/4 in. I.D. x 75 ft. PVC hose. It uses a stationary dual pedestal steel frame and can be mounted to wall, floor, ceiling, bench, or truck surfaces. The reel has a 3/4 in. female NPT inlet with a reversible left- or right-side connection option, a 3/4 in. outlet, and is rated for low-pressure applications up to 250 psi with an operating temperature range of 32 to 150 degrees F.
Key Features:
- Spring return drive: Retracts the hose automatically after use.
- Included hose: Supplied with a red 3/4 in. x 75 ft. PVC hose for air or water service.
- Mounting options: Can be installed on wall, floor, ceiling, bench, or truck mounts.
- Dual pedestal construction: Steel pedestal design with double guide arm for supported hose handling.
- Ball bearings: Permanently lubricated, sealed ball bearings support smooth reel rotation.
- Powder-coated steel reel: Carbon steel housing and structural steel components with a corrosion-resistant powder-coated finish.
- Connection size: 3/4 in. NPT inlet and outlet fittings; hose ends are 3/4 in. male NPT brass fittings.
- Pressure and temperature: Maximum operating pressure of 250 psi and maximum operating temperature of 150 degrees F.
- Adjustable guide arm: Guide arm can be positioned in 4 different locations.
- Included components: Comes with hose, hose stop, and bumper.
- Overall size: 24 in. L x 13 in. W x 25 3/8 in. H; reel weight is 102 lb.
- Open reel design: Non-enclosed reel allows direct access to the spool and hose.
