Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 300 psi Max. Pressure, Red
Mfr # 81100 OLP
Zoro # G1982303
product price:Â
$
757.99
/ea
Free Shipping & Returns
Key Features
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
3/8 in MNPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 81100 OLP
- Zoro #
- G1982303
- UPC #
- 699567009870
- Country of Origin
- United States
Dimensions
- Hose Inside Dia.
- 3/8 in
- Overall Height
- 25 3/8 in
- Hose Length
- 100 ft
- Overall Width
- 10 1/2 in
- Overall Length
- 24 in
- Reel Diameter
- 15 1/2 in
- Hose Outside Dia.
- 5/8 in
- Height
- 25 3/8 in
- Reel Width
- 10 1/2 in
- Length
- 24 in
- Swivel Outlet Thread Size
- 1/2 in - 14
- Mount Hole Diameter
- 1/2 in
- Mount Base Height
- 12 in
- Swivel Inlet Thread Size
- 1/2 in - 14
- Hose Fitting B Size
- 3/8 in
- Overall Dimensions
- 24 in L x 10 1/2 in W x 25 3/8 in H
- Mounting Hole Center to Center Width
- 6 in
- Mount Base Width
- 7 11/32 in
- Swivel Inlet Size
- 1/2 in
- Fitting Size
- 3/8 in x 3/8 in
- Mounting Hole Center to Center Height
- 10 in
- Swivel Outlet Size
- 1/2 in
- Hose Fitting A Size
- 3/8 in
- Wire Rope Length
- 24 in
Description

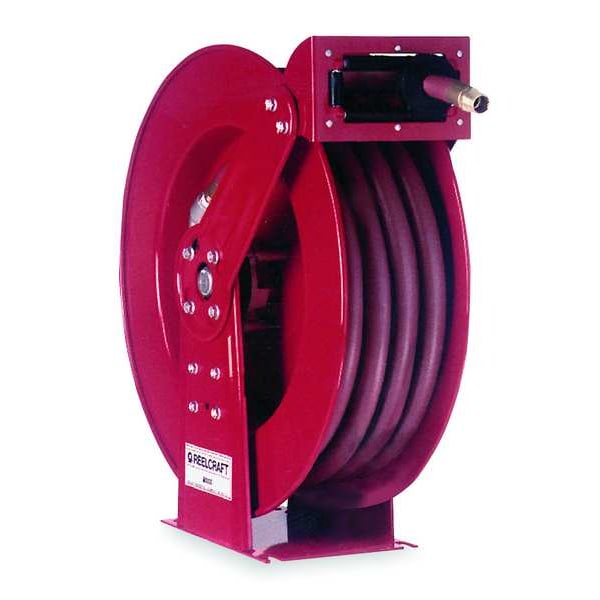

REELCRAFT 81100 OLP is a spring return hose reel for air and water service that includes a 3/8 in. I.D. x 100 ft PVC hose. It uses a dual pedestal, open-frame steel reel with a stationary base and can be mounted on a bench or truck, ceiling, floor, or wall. The reel has a locking, spring-loaded latch, a 1/2 in. FNPT inlet that can be connected from either side, and a 3/8 in. MNPT hose outlet. It is rated for a maximum operating pressure of 300 psi and a maximum operating temperature of 150 degrees F.
Key Features:
- Spring return drive: Retracts the hose back onto the reel using spring-powered rewind.
- Included hose: Comes with a red 3/8 in. I.D. x 100 ft PVC hose for air and water applications.
- Mounting options: Designed for bench and truck, ceiling, floor, or wall mounting.
- Dual pedestal steel construction: Carbon steel reel with steel base, upright, guide arm, and spool.
- Powder-coated finish: Coated steel components provide a corrosion-resistant finish.
- Ball bearing design: Two permanently lubricated, sealed ball bearings support smooth reel rotation.
- Adjustable guide arm: Guide arm can be set in 4 different positions to suit installation layout.
- Connection sizes: Reel inlet is 1/2 in. FNPT; hose fittings are 3/8 in. male NPT brass.
- Latch mechanism: Spring-loaded locking latch holds the hose at the selected length.
- Operating range: Rated for 300 psi, with an operating temperature range of 32 to 150 degrees F.
- Overall size: Measures 24 in. L x 10 1/2 in. W x 25 3/8 in. H.
