Spring Return Hose Reel, 3/8 in Hose Diameter, 35 ft Length, 300 psi Max. Pressure, Brass, Red

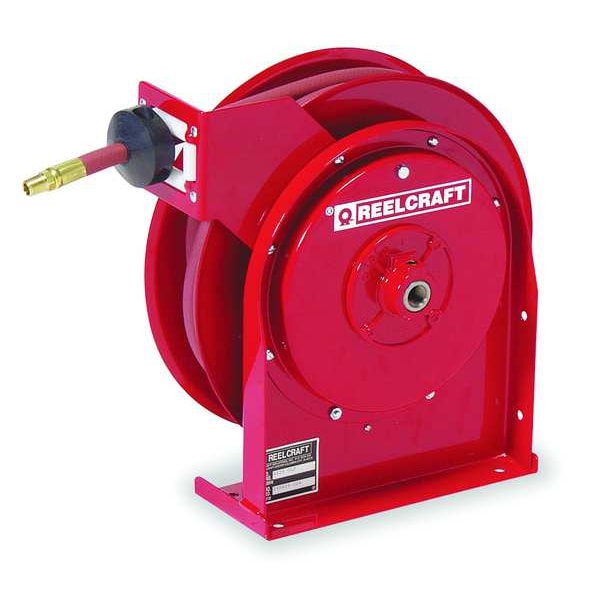

The REELCRAFT 5635 OLP is a stationary spring return hose reel with a 35 ft x 3/8 in I.D. PVC hose for air or water service. It can be mounted to a ceiling, floor, wall, or truck and uses a base-plumbed design with a bent tube swivel to route hose onto the spool. The swivel is positioned inside the spool, and the reel includes a hose stop and bumper. This open-style reel is made from steel with a powder-coated finish and has a maximum operating pressure of 300 psi and an operating temperature range of 32 to 150 degrees F.

Key features:

• Spring return drive: Retracts the hose back onto the reel after use.
• 35 ft PVC hose included: 3/8 in I.D. red hose for air and water applications.
• Mounting options: Designed for ceiling, floor, wall, or truck mounting.
• Base-plumbed inlet: Hose is plumbed into the base to reduce stress on the swivel.
• Bent tube swivel: Supports a smooth hose transition onto the spool.
• Protected swivel: Swivel is nested inside the spool to reduce exposure to impact.
• Latch mechanism: Quiet, spring-loaded latch locks the spool in two positions per rotation.
• Adjustable guide arm: Single guide arm adjusts to two positions.
• Steel construction: Carbon steel reel with steel base, upright, guide arm, and spool.
• Powder-coated finish: Coated steel components help resist corrosion.
• Connection sizes: Reel inlet is 3/8 in FNPT; hose outlet is 1/4 in MNPT with brass NPT fittings.
• Dimensions: 14-1/4 in L x 6-1/8 in W x 14-3/8 in H; weight is 25 lb.
