Shop REES

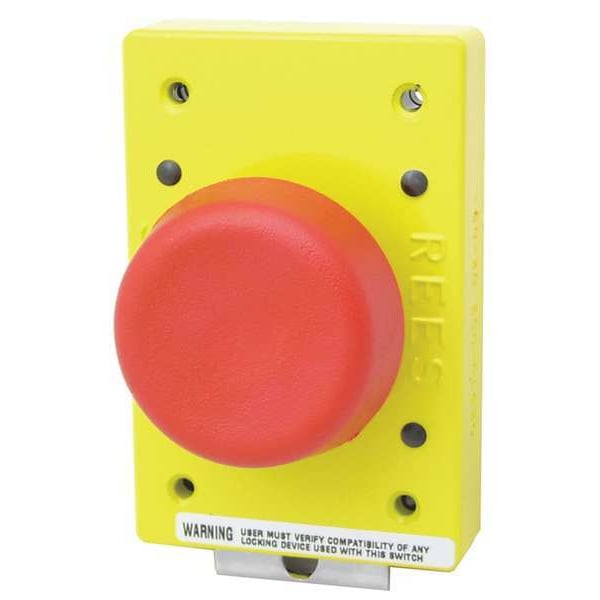

Emergency Stop Push Button, 57 mm, 1NO/1NC, Red

  • Mfr # 02510-002

  • Zoro # G9999491

product price:  $361.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
57 mm
Head Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
02510-002
Zoro #
G9999491
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
57 mm
Mushroom Head Diameter
57.15 mm
Size
57 mm
Overall Height
4.31 in
Overall Depth
3.92 in
Manufacturer Warranty Length
1 yr
Overall Width
2.81 in

Details

Item
Emergency Stop Push Button
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Pressure Plate
Standards
ANSI B11.1, CE, CSA C22.2 LR3648, IEC/EN 60947-5-5, OSHA, UL 508
Contact Rating
10A @ 600V AC
Material
metal
Basic Material
Metal
Type of Operator
57mm Mushroom Plunger
Color
Red
Contact Form
1NO/1NC
Features
Gold Plated Contacts, Plated Steel Latch Plate has a 0.31 in Hole
NEMA Rating
12, 13
Number of Operators
1
IP Rating
IP65
NEMA Contact Rating Designation
A600/N300
Bezel
Die Cast Zinc
Bezel Material
Zinc Die Cast
DC Contact Rating
1.1 A @ 250 V
AC Contact Rating
10 A @ 600 V
Product Type
Push Button Operators
Operating Temperature - Minimum
-22 Degrees F
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC
Operating Temperature - Maximum
131 Degrees F
Resistance Properties
Impact Resistant, Oil and Grease Resistant
Operator Material
Plastic
Mechanical Operating Durability
5.00 x 10^5
NEMA Enclosure Rating
12, 13

Description

Emergency Stop Push Button, 57 mm, Momentary Action, 57mm Mushroom Plunger Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Die Cast Zinc, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/N300, Number of Operators 1, NEMA Rating 12, 13, IP Rating IP65, Legend Not Applicable, Standards ANSI B11.1, CE, CSA C22.2 LR3648, IEC/EN 60947-5-5, OSHA, UL 508, Terminal Connection Pressure Plate
