Reese

Hitch Draw Bar, Class II, III, 5000 lb

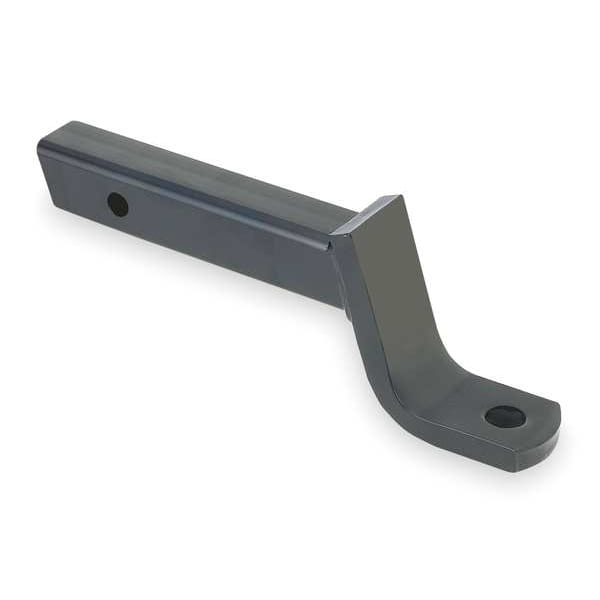

Reese Hitch Draw Bar, Class II,  III, 5000 lb 2117511
Hover or click to zoom Tap to zoom
  • Drop: 3 1/4 in
  • Size (In.): 1" Hitch Ball Hole
  • Rise: 2 in
  • Length: 9 1/2 in
  • For Use With: Trailer and Towing Vehicles
  • Includes: Not Applicable
  • Item: Ball Mount
  • Type (Class): III
See full product details
$24.23

Subtotal: $24.23

Reese #2117511 Specifications

  • Drop: 3 1/4 in
  • Size (In.): 1" Hitch Ball Hole
  • Rise: 2 in
  • Length: 9 1/2 in
  • For Use With: Trailer and Towing Vehicles
  • Includes: Not Applicable
  • Item: Ball Mount
  • Type (Class): III
  • Class: III
  • Finish: Powder Coated
  • Capacity GVW: 5000 lb
  • Tongue Capacity: 600 lb
  • Type: Standard Ball Mount
  • Fits Ball Dia.: 1 in
  • Standards: SAE J-684
  • Features: Easy Load Angle Cut Design
  • Length (Straight Wireway): 9 1/2 in
  • Material: Steel
  • Pin Hole to Hitch Ball Distance: 9 1/2 in
  • Weight: 5.5 lb
  • Ball Mount Style: Ball Mounts
  • Ball Diameter: Not Applicable
  • Compatible Hitch Size: 2 in
  • Resistance Properties: Weather-Resistant
  • Compatible Ball Diameter: Not Applicable
  • Compatible Ball Shank Diameter: 1 in
  • Overall Width: 1 3/4 in
  • Overall Length: 9 1/2 in
  • Mount w/ Hitch Ball Style: Not Applicable
  • Gross Towing Weight Capacity: 6,000 lb
  • Gross Vehicle Weight Capacity: 6,000 lb
  • Vehicle Class: III
  • Country of Origin (subject to change): China

Description

Ball Mount, Ball Mount Style Ball Mounts, Vehicle Class III, Ball Diameter Not Applicable, Compatible Ball Diameter Not Applicable, Compatible Ball Shank Diameter 1 in, Compatible Hitch Size 2 in, Gross Towing Weight Capacity 6,000 lb, Gross Vehicle Weight Capacity 6,000 lb, Pin Hole to Hitch Ball Distance 9 1/2 in, Material Steel, Finish Powder Coated, Resistance Properties Weather-Resistant, Includes Not Applicable, Weight 5.5 lb, Mount w/ Hitch Ball Style Not Applicable, Drop 3 1/4 in
