Shop REGAL BELOIT

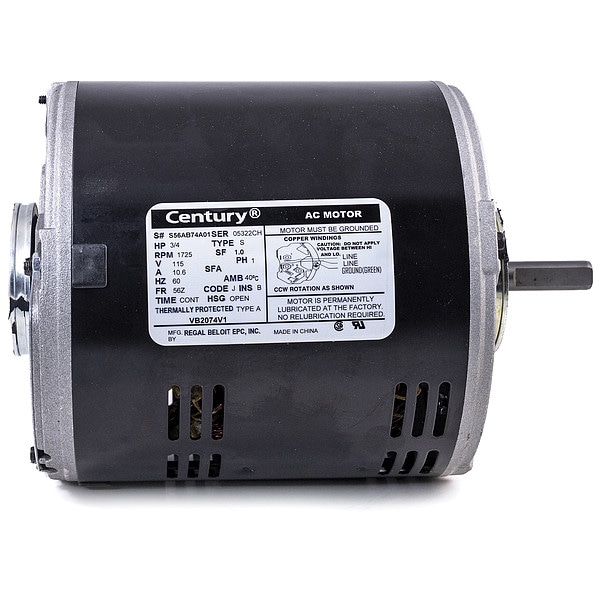

Evaporative Cooler Motor, 3/4 hp

  • Mfr # 110448
  • Zoro # G0247180
product price:
$
378.99
/ea
Free Shipping & Returns

Key Features

Material
Metal
Voltage
208V to 230V, 460V
Height
7 in
Width
6 in
For Use With Mfr. Model Number
N55/65S, N56/66D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
110448
Zoro #
G0247180
UPC #
009009940058
Country of Origin
China

Dimensions

Height
7 in
Width
6 in
Overall Length
10 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 5/8 in
Frame Size
56
Shaft Diameter
1/2 in
Wire Rope Length
10 1/2 in
Length
10 1/2 in

Details

Item
Evaporative Cooler Motor
Material
Metal
Voltage
208V to 230V, 460V
For Use With Mfr. Model Number
N55/65S, N56/66D
Fits Brand
Essick Air
Features
3/4 hp, single-phase, 1725 RPM, 1-Speed
Max. Amps
13.8 A
Frame
56C
Application
General Purpose
Motor Application
General Purpose
Ins. Class
B
No. of Speeds
1
Standards
CSA, UL Recognized
Max. Ambient Temp.
40 Degrees C
Compatible Manufacturer Model Number
N55/65S, N56/66D
Duty Cycle
Continuous
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
3/4 hp
Nominal Efficiency
75.5 %
Motor Thermal Protection
None
Usable @ 208V
Usable at 208V
OEM Replacement Brand
Essick Air
Weight
21 lb
Full Load Amps
2.5 to 2.4/1.2 A
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Phase
Single
Motor Frame Material
Rolled Steel
Compatible Brand
Essick Air
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Capacitor Required
Capacitor Not Included
Duty
Continuous
Number of Speeds
1
Compatible Manufacturer Part Number
N55/65S, N56/66D
Product Type
Evaporative Cooler Motor
Full Load Current @ 60 Hz
7.4/3.7 A
Bearing Type
Ball
Insulation Class
B

Description

Evaporative Cooler Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.4/3.7 A, 56 Frame, OEM Replacement Brand Essick Air, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Frame Material Steel
